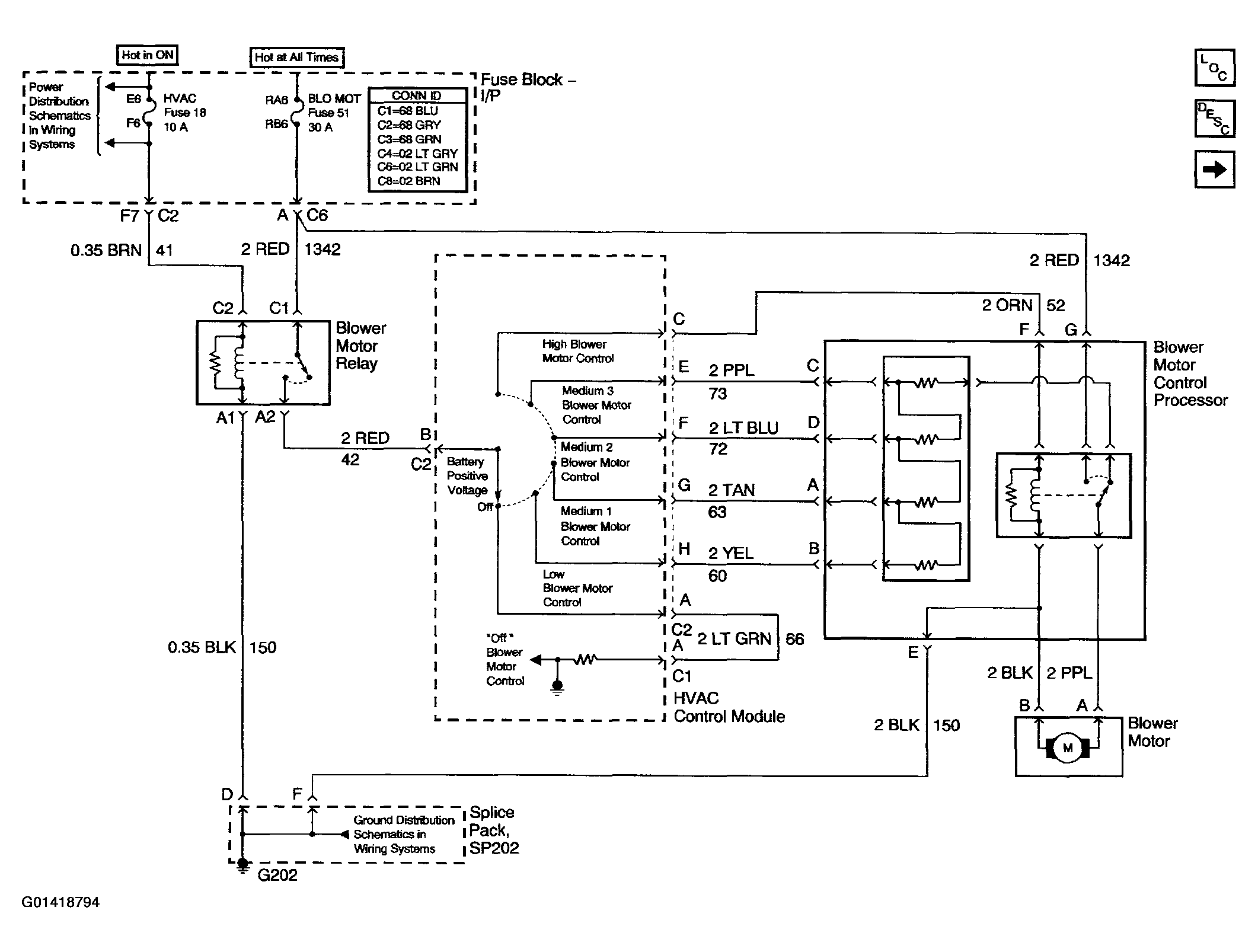

Fig 1: Schematics Diagram - Blower Controls
Courtesy of GENERAL MOTORS CORP.

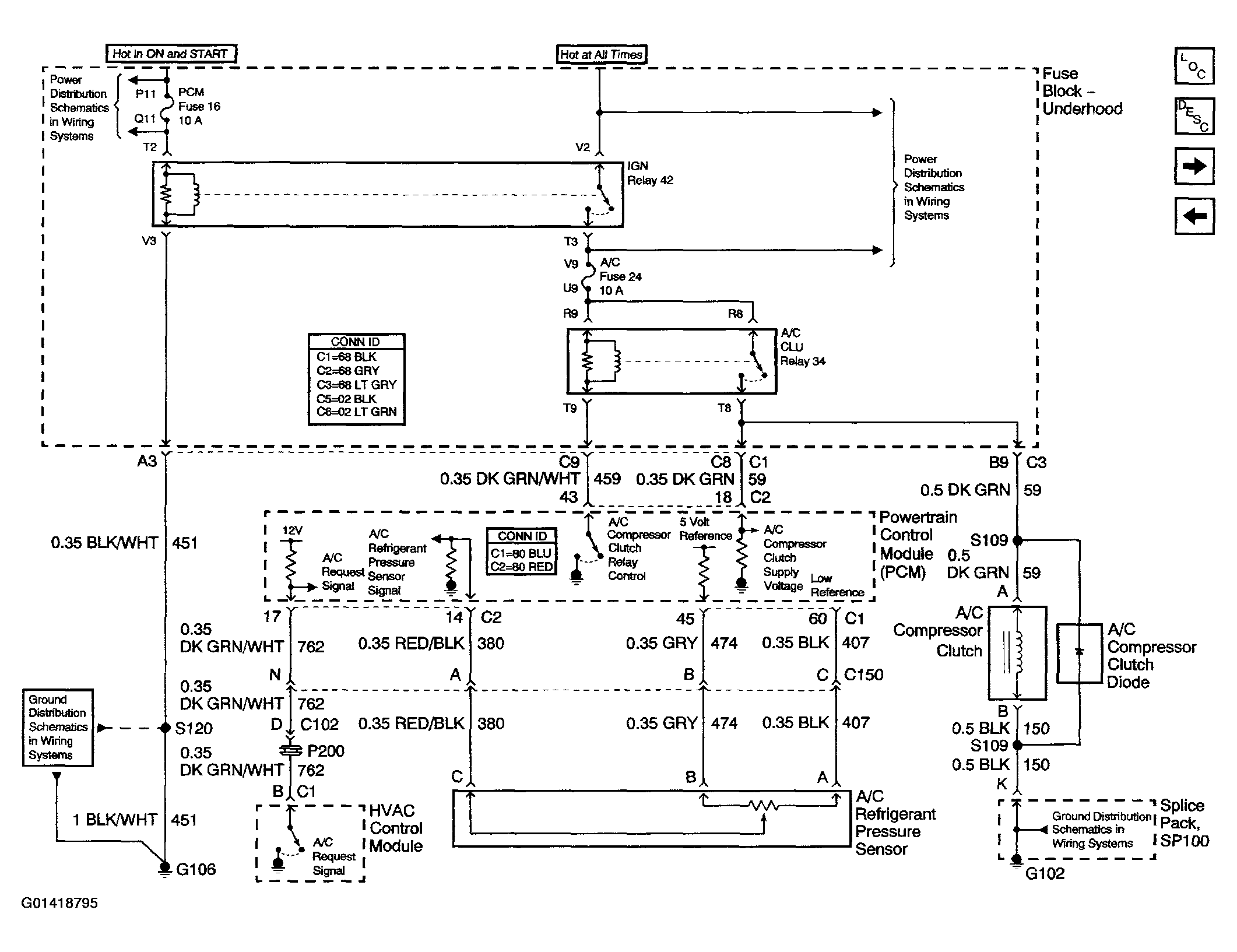

Fig 2: Schematics Diagram - Compressor Controls
Courtesy of GENERAL MOTORS CORP.

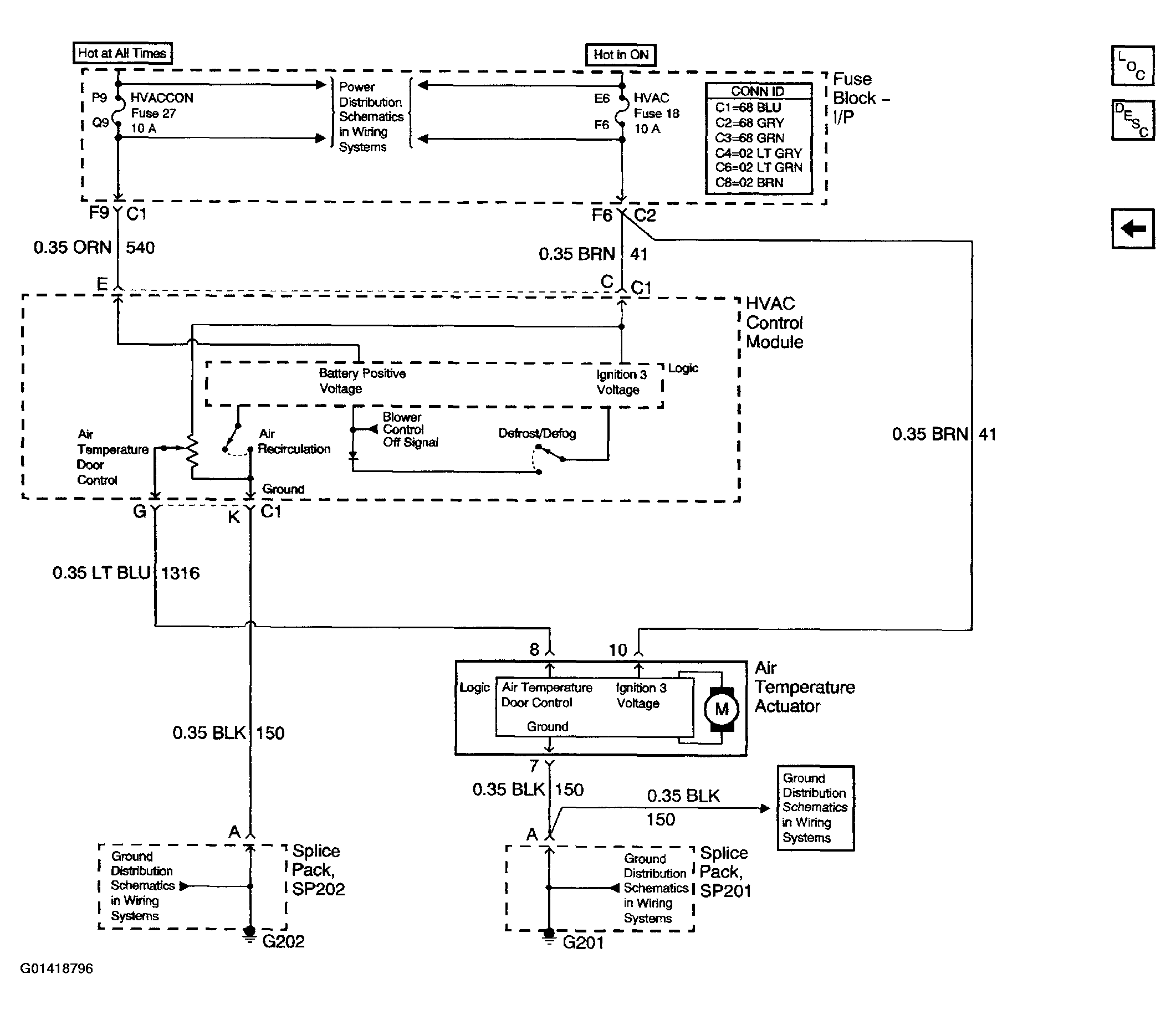

Fig 3: Schematics Diagram - Air Delivery/Temperature Controls
Courtesy of GENERAL MOTORS CORP.

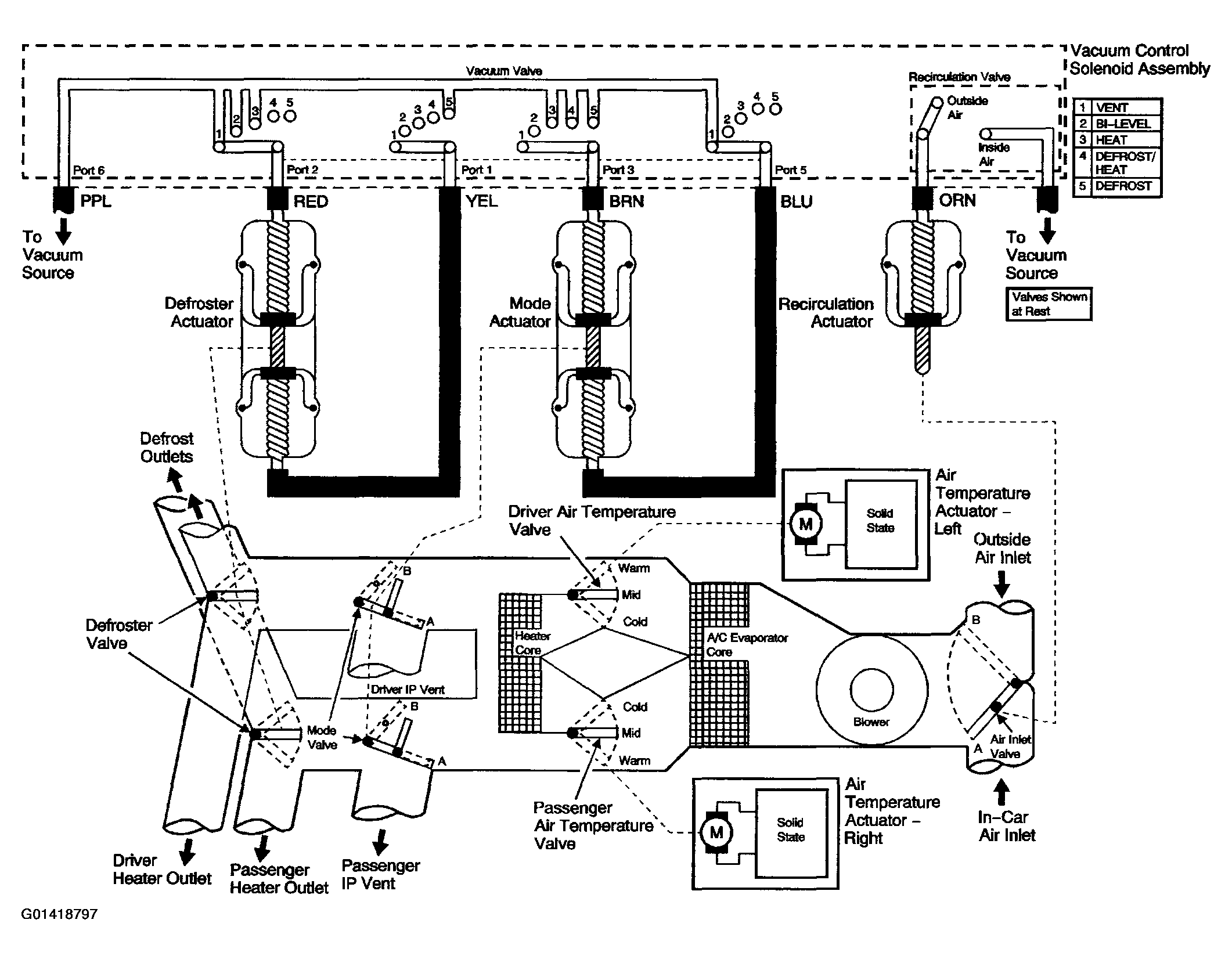

Fig 4: HVAC Vacuum Schematics Diagram - Air Delivery (CJ3)
