Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR in Interior Trim.
  2. Remove the Bose Module. Refer to BOSE MODULE REPLACEMENT in Entertainment.
  3. Disconnect the air temperature actuator electrical connector.
    Fig 1: Disconnecting Air Temperature Actuator Electrical Connector
    G01418846Courtesy of GENERAL MOTORS CORP.
  4. Remove the air temperature actuator retaining screws.
  5. Remove the air temperature actuator.

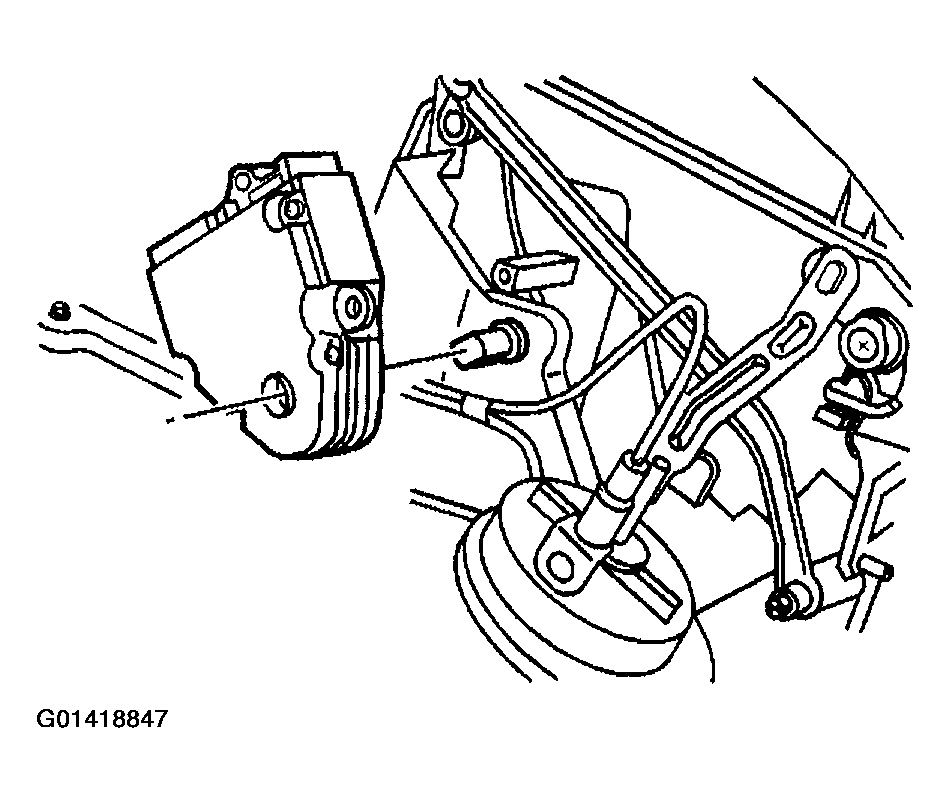

    Fig 2: Removing Air Temperature Actuator
    G01418847Courtesy of GENERAL MOTORS CORP.
