Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the service port valve caps.
  2. Recover the refrigerant from the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  3. Using J 34611-A  remove the valve core from the service port.

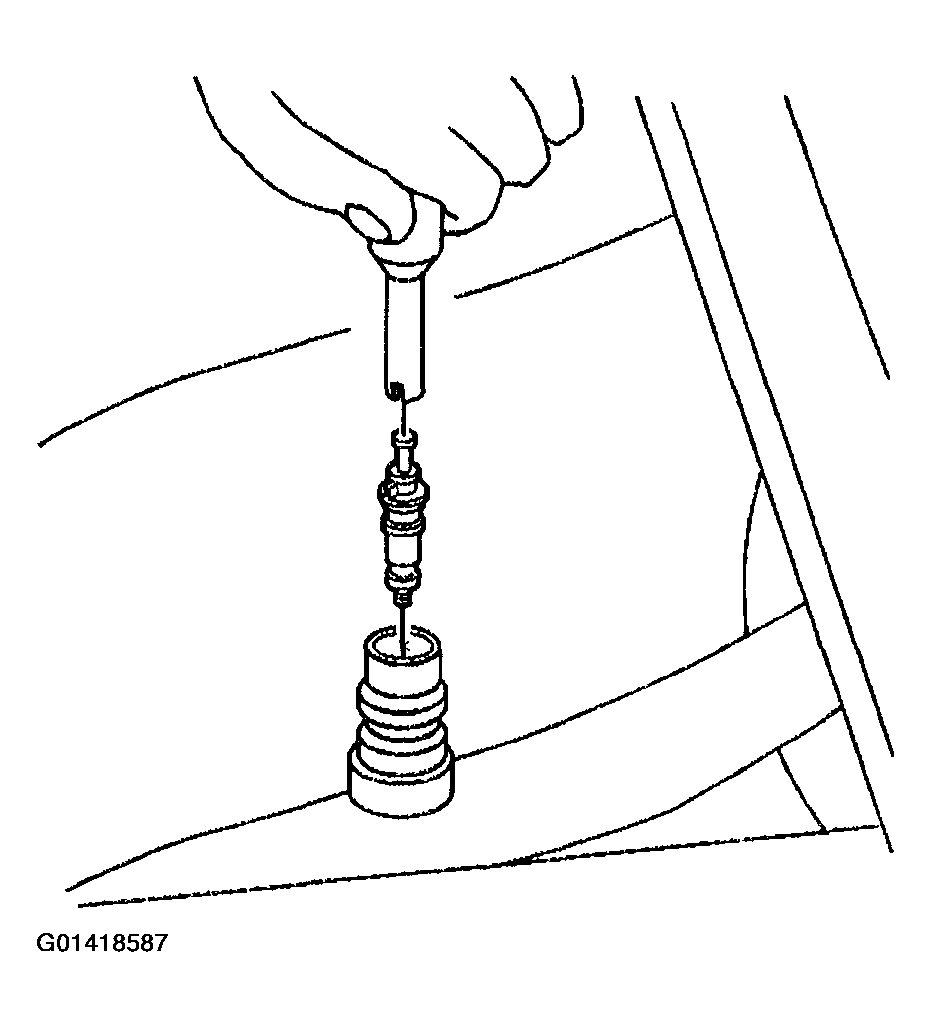

Fig 1: Removing Valve Core From Service Port
G01418587Courtesy of GENERAL MOTORS CORP.
