Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the mode door actuator.
  3. Remove the air distribution case cover retaining screws.
  4. Remove the air distribution case cover.
  5. Remove and discard the air distribution case seal.
  6. Remove the mode door.

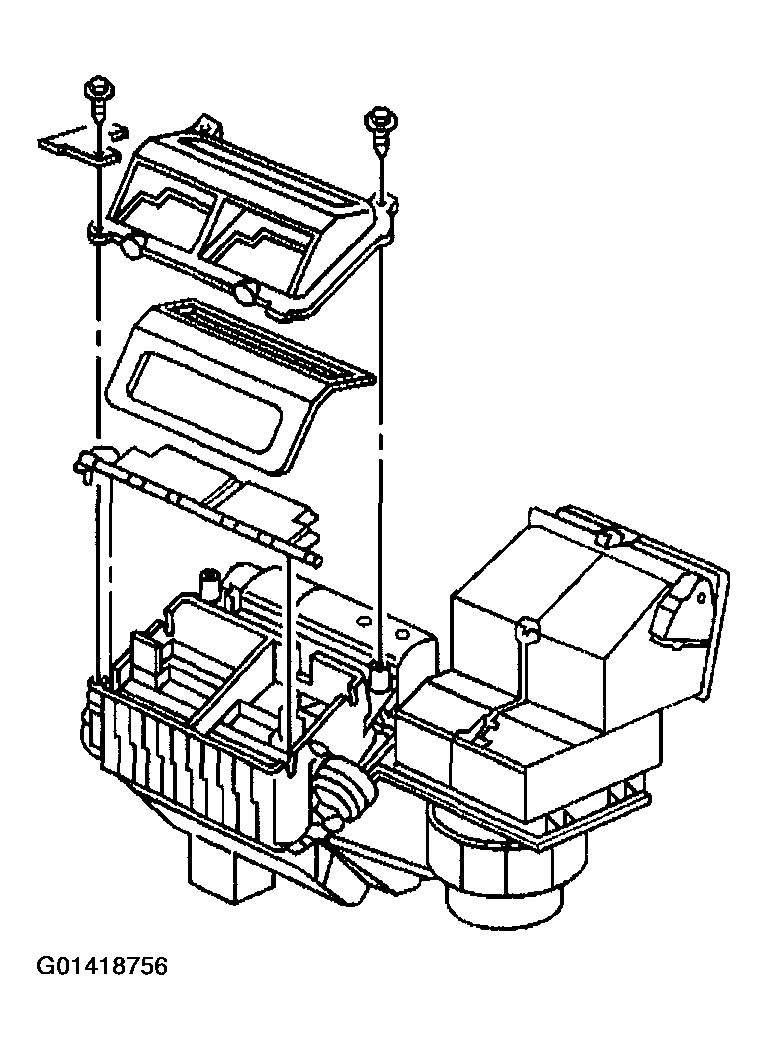

    Fig 1: Removing Mode Door
    G01418756Courtesy of GENERAL MOTORS CORP.
