Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mode door.

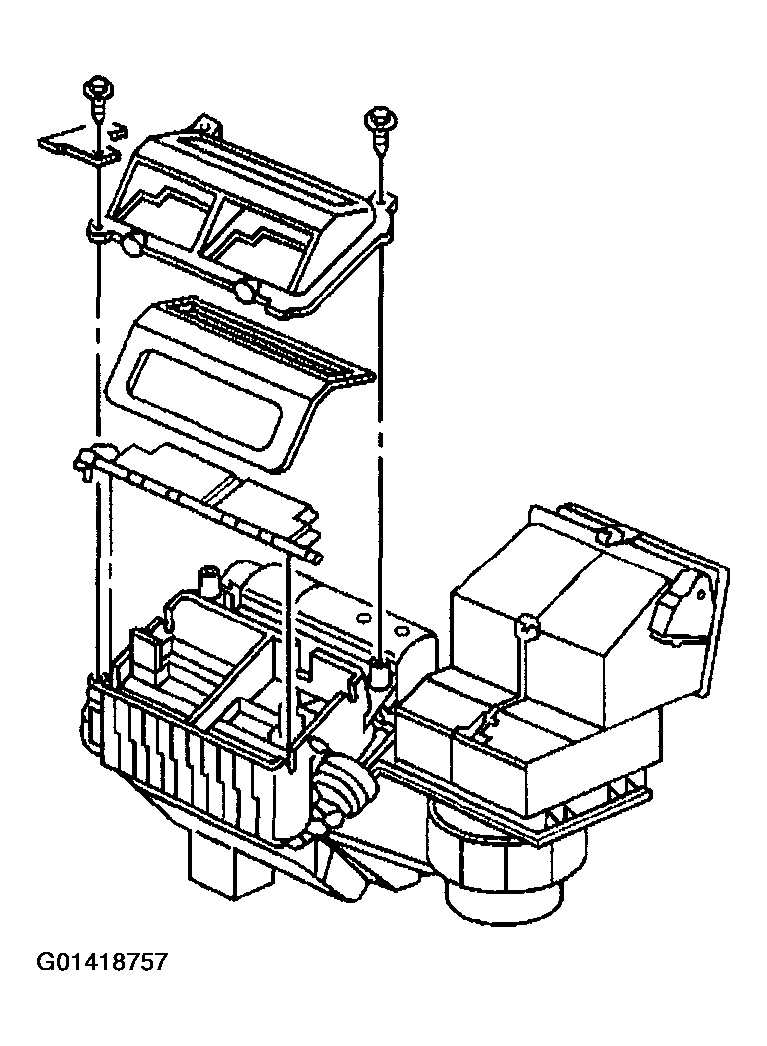

    2. Fig 1: Installing Mode Door
    G01418757Courtesy of GENERAL MOTORS CORP.
  2. Install a new air distribution case seal.
  3. Install the air distribution case cover.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the air distribution case cover retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  5. Install the mode door actuator.
  6. Install the IP trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
