Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Install the defroster duct.
Use a twisting motion to secure the windshield defroster duct to the LH and RH side window lower defogger outlet ducts.

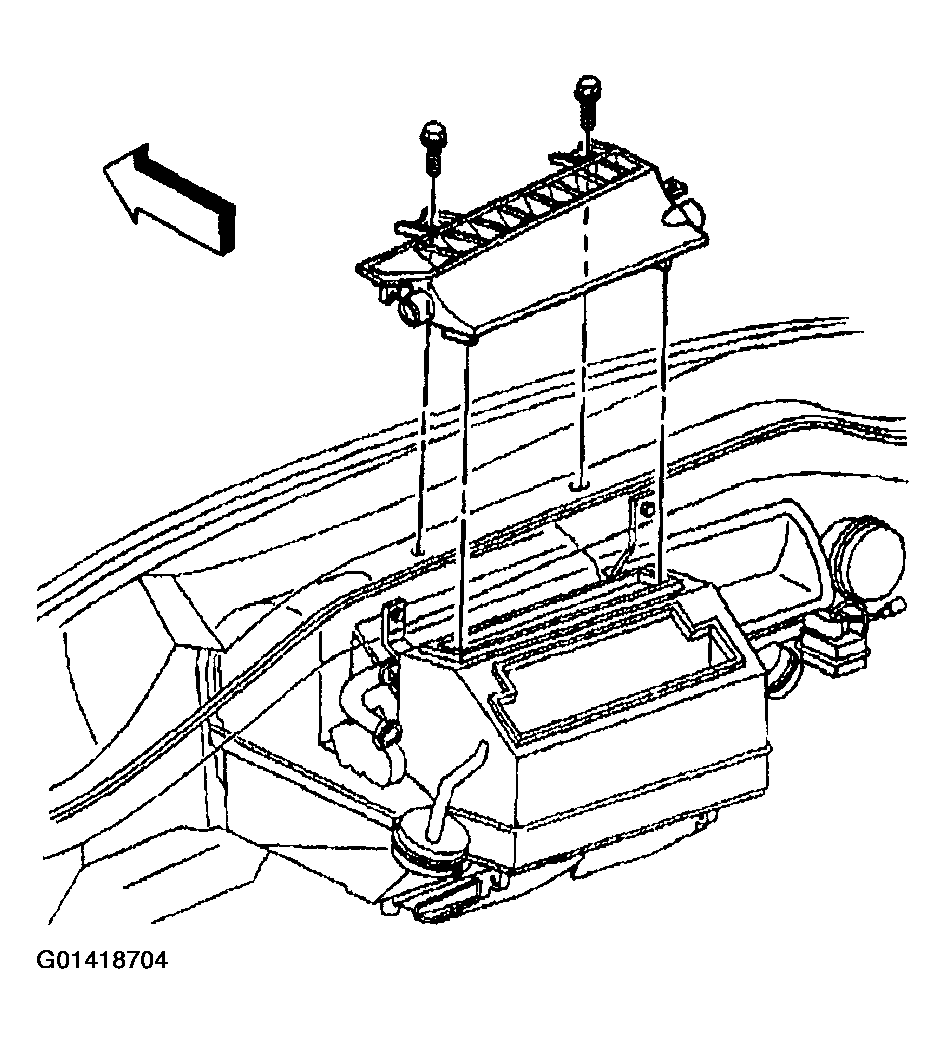

- Lower the windshield defroster duct into position and align the duct with the opening of the HVAC module and the I/P upper support beam.NOTE: Refer to FASTENER NOTICE .
- Install the windshield defroster duct LH retaining screw first (net location), then install the RH retaining screw.
Tighten
Tighten the screws to 10 N.m (89 lb in).
- Install the DRL and sunload temperature sensor wire retainers to the windshield defroster duct.
- Install the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
