Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side window defogger lower outlet duct
    1. 1.1. Use a twisting motion to secure the lower duct to the windshield defroster duct.
    2. 1.2. Install the push-in retainer.

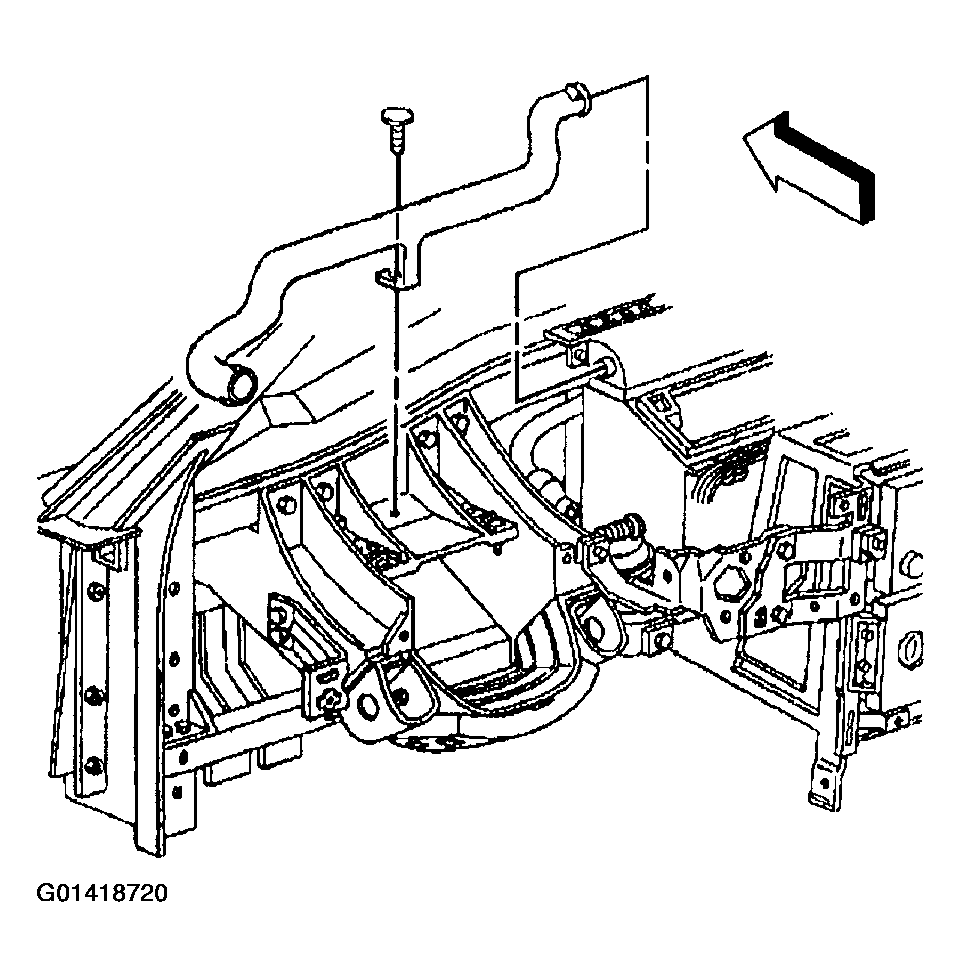

    Fig 1: Installing Side Window Defogger Lower Outlet Duct
    G01418720Courtesy of GENERAL MOTORS CORP.
  2. Install the side window defogger upper outlet duct.

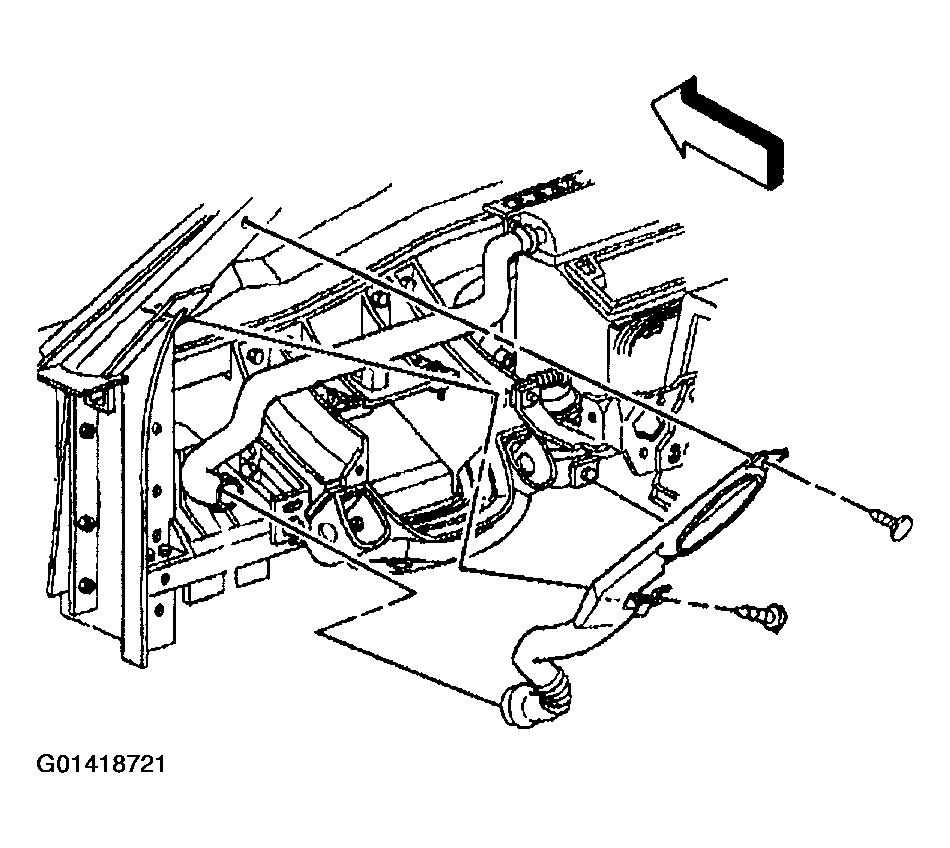

    Fig 2: Installing Side Window Defogger Upper Outlet Duct
    G01418721Courtesy of GENERAL MOTORS CORP.
    1. 2.1. Use a twisting motion to secure the upper duct to the lower duct.
    2. 2.2. Install the push-in retainers.
  3. Install the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
