Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the compressor relay (2) in the same position as removed.
  2. Install the electrical center cover.

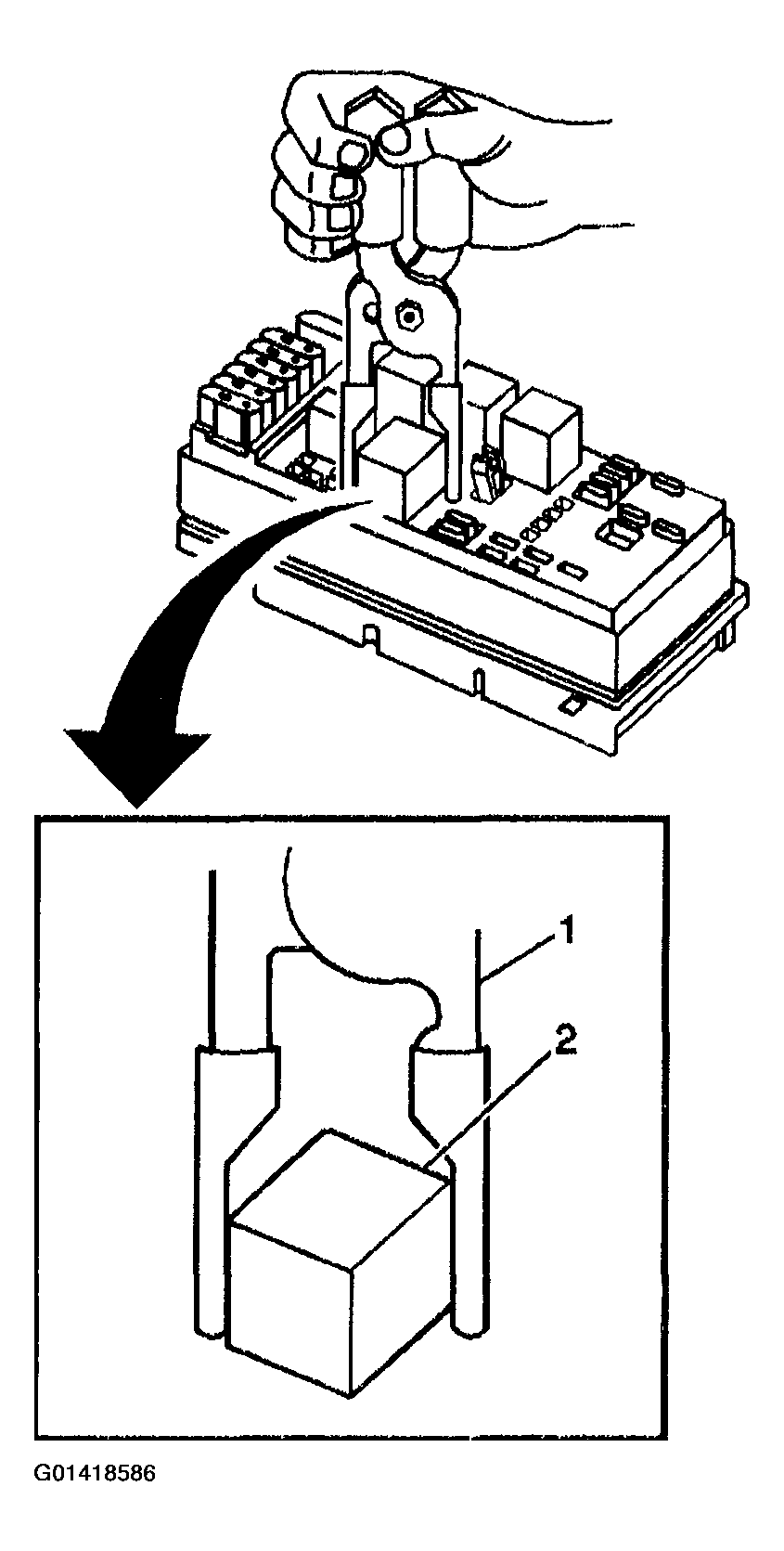

Fig 1: Installing Compressor Relay
G01418586Courtesy of GENERAL MOTORS CORP.
