Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the compressor. Refer to COMPRESSOR REPLACEMENT  .
  2. Remove the compressor drive belt tensioner from the compressor mounting bracket.
  3. Remove the compressor drive belt idler pulley from the compressor mounting bracket.

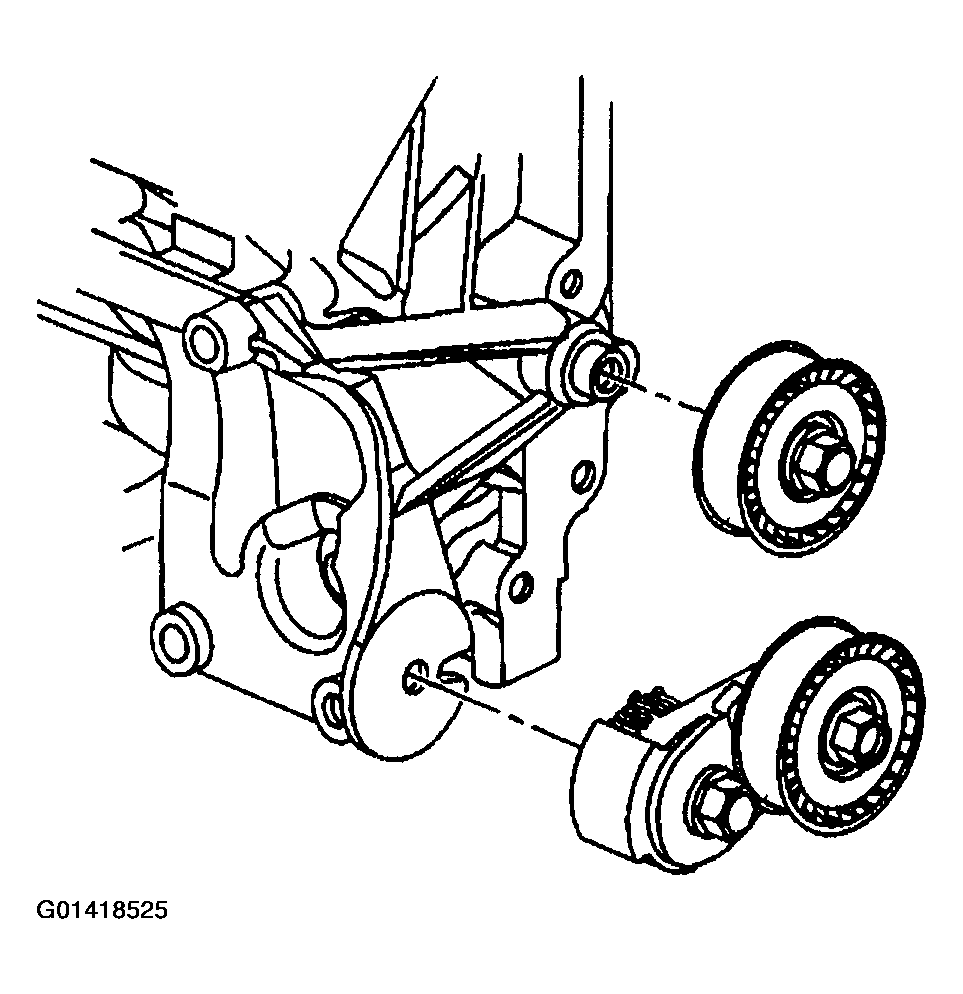

    Fig 1: Removing Compressor Drive Belt Tensioner From Compressor Mounting Bracket
    G01418525Courtesy of GENERAL MOTORS CORP.
  4. Remove the compressor bracket mounting bolt.
  5. Remove the compressor bracket.

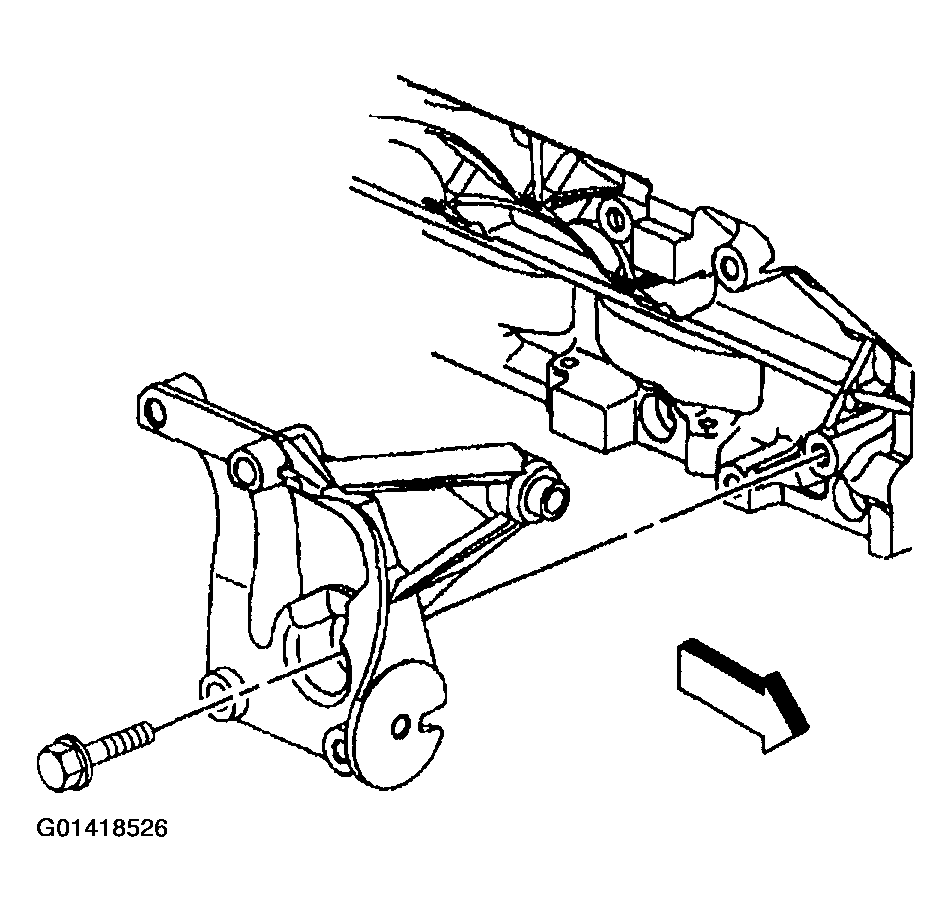

Fig 2: Removing Compressor Bracket
G01418526Courtesy of GENERAL MOTORS CORP.
