Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the compressor mounting stud to the engine block.
  2. Install the compressor mounting bracket onto the compressor mounting stud.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the compressor bracket mounting bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

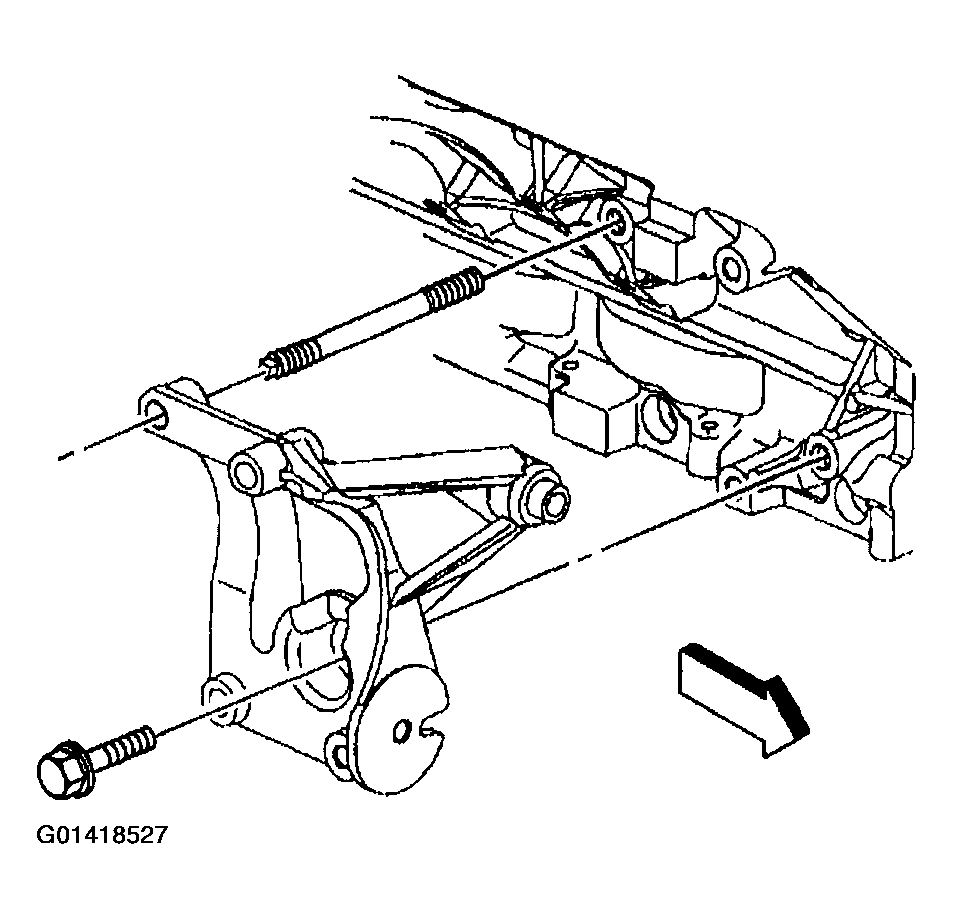

    Fig 1: Installing Compressor Mounting Bracket
    G01418527Courtesy of GENERAL MOTORS CORP.
  4. Install the compressor drive belt idler pulley to the compressor mounting bracket.

    Tighten

    Tighten the compressor drive belt idler pulley to 50 N.m (37 lb ft).

  5. Install the compressor drive belt tensioner to the compressor mounting bracket.

    Tighten

    Tighten the compressor drive belt tensioner to 25 N.m (18 lb ft).

  6. Install the compressor. Refer to COMPRESSOR REPLACEMENT  .

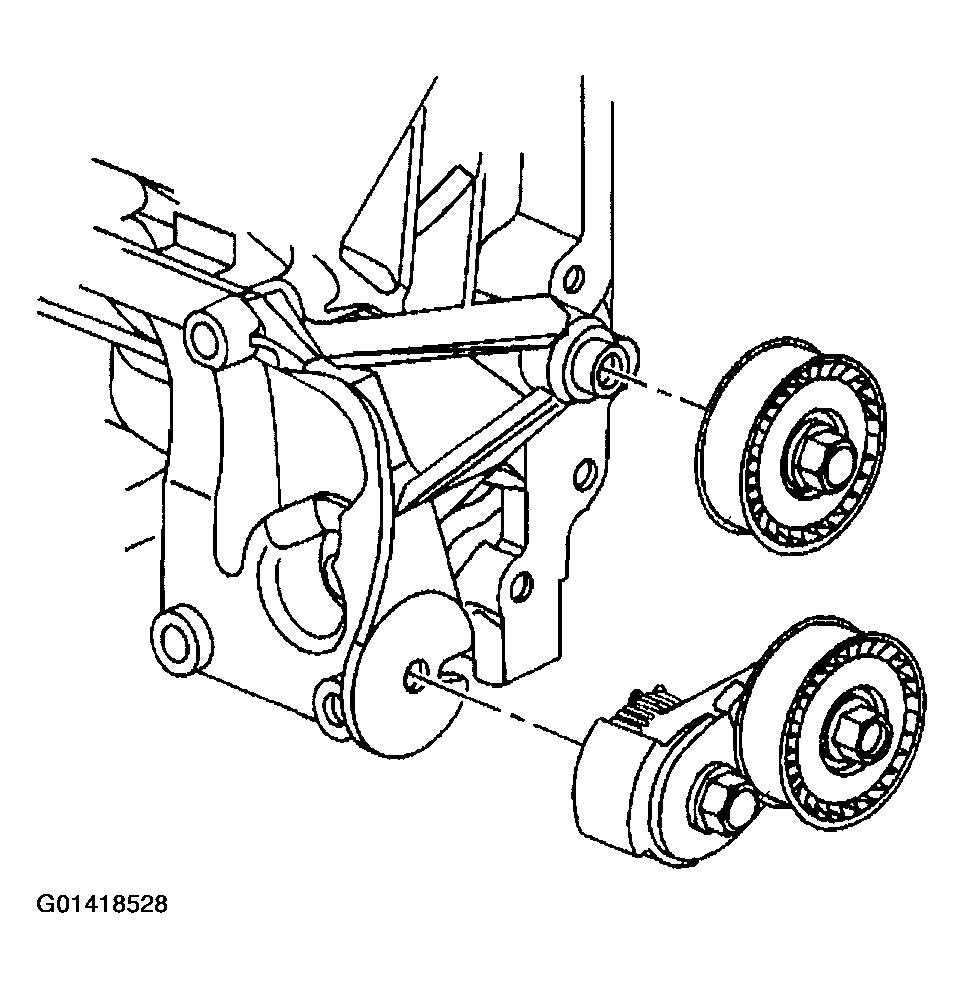

Fig 2: Installing Compressor Drive Belt Tensioner To Compressor Mounting Bracket
G01418528Courtesy of GENERAL MOTORS CORP.
