Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
  3. Remove the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.
  4. Grasp the floor air outlet rear duct - LH and rotate 1/4 turn clockwise to release.

    Carefully use a flat bladed tool to release the duct, if necessary.

  5. Remove the duct.

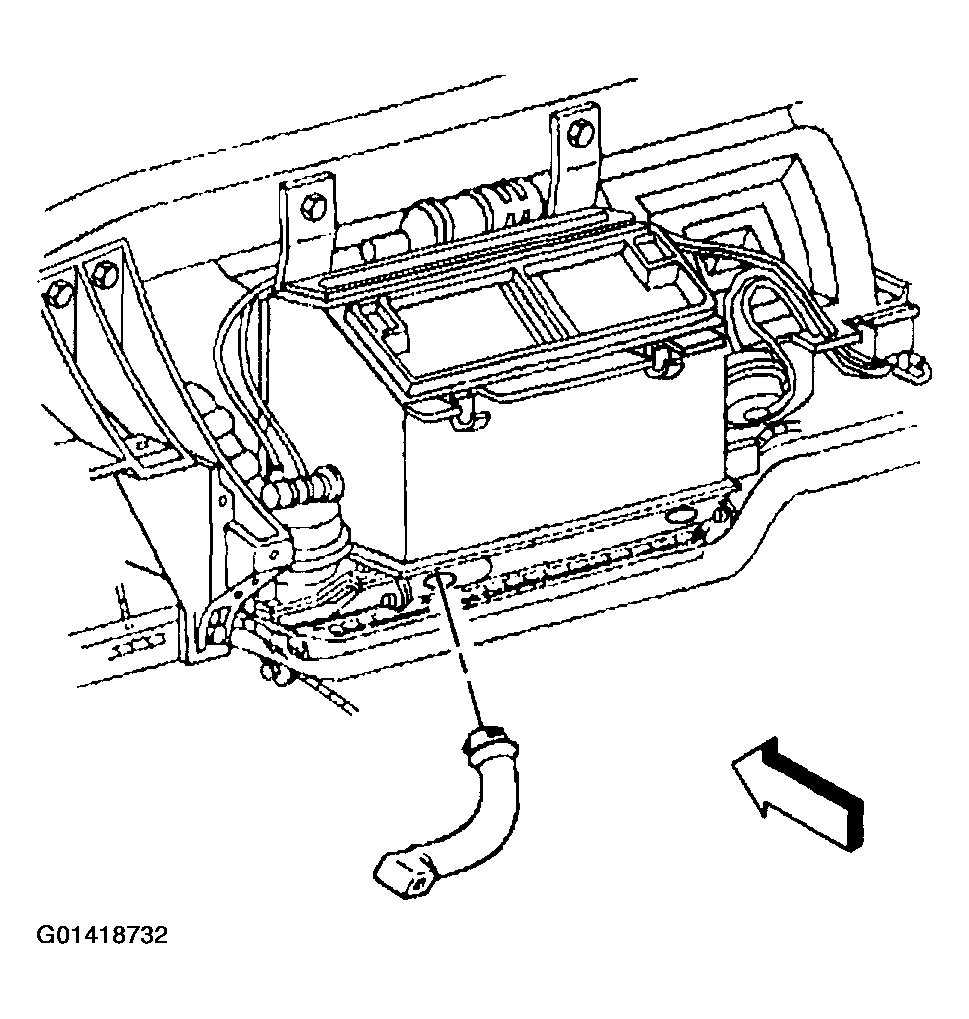

    Fig 1: Removing Air Outlet Duct - Rear Floor LH
    G01418732Courtesy of GENERAL MOTORS CORP.
