Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the distribution duct into position on the upper trim pad.

    Insert the duct retaining tabs into the trim pad slots.

    NOTE: Refer to FASTENER NOTICE .

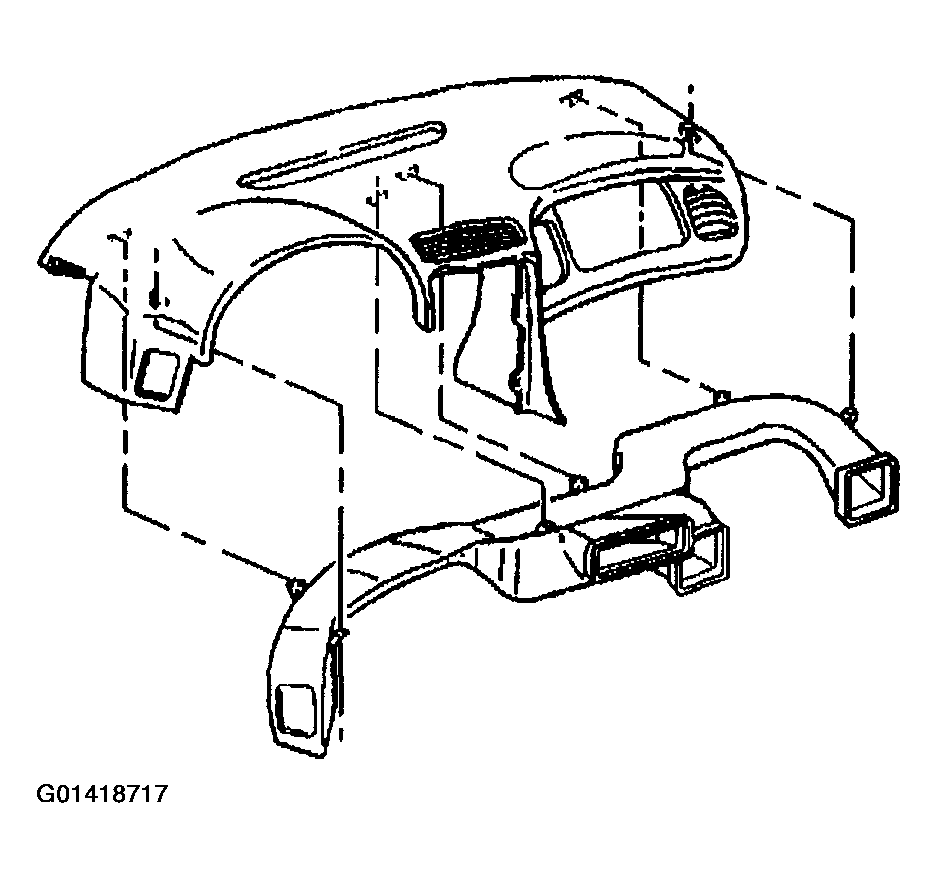

    Fig 1: Installing Air Distribution Duct
    G01418717Courtesy of GENERAL MOTORS CORP.
  2. Install the air distribution duct retaining screws to the underside of the trim pad.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

  3. Install the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
