Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring. Refer to O-RING REPLACEMENT  .
    NOTE: Refer to FASTENER NOTICE .
  2. Install the pressure sensor (1) to the evaporator tube - front.

    Tighten

    Tighten the sensor to 4.75 N.m (42 lb in).

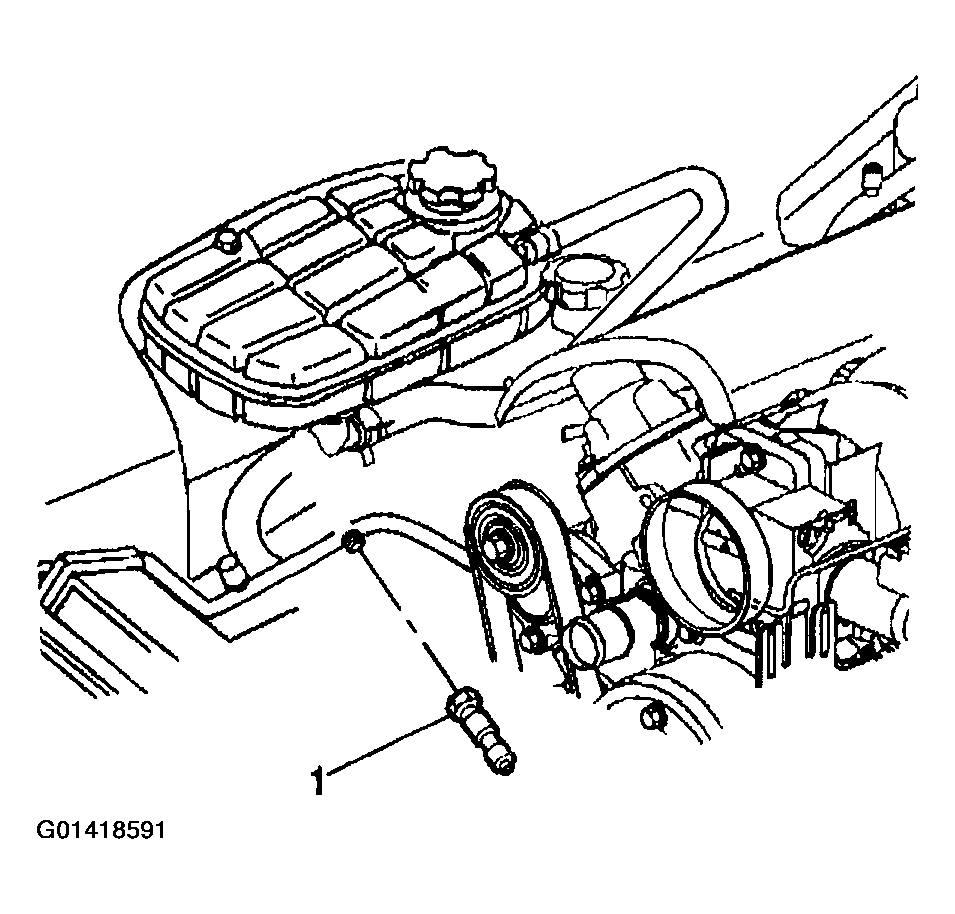

    Fig 1: Installing Pressure Sensor To Evaporator Tube
    G01418591Courtesy of GENERAL MOTORS CORP.
  3. Connect the pressure sensor electrical connector.
  4. Leak test the fittings of the component using J 39400-A  .

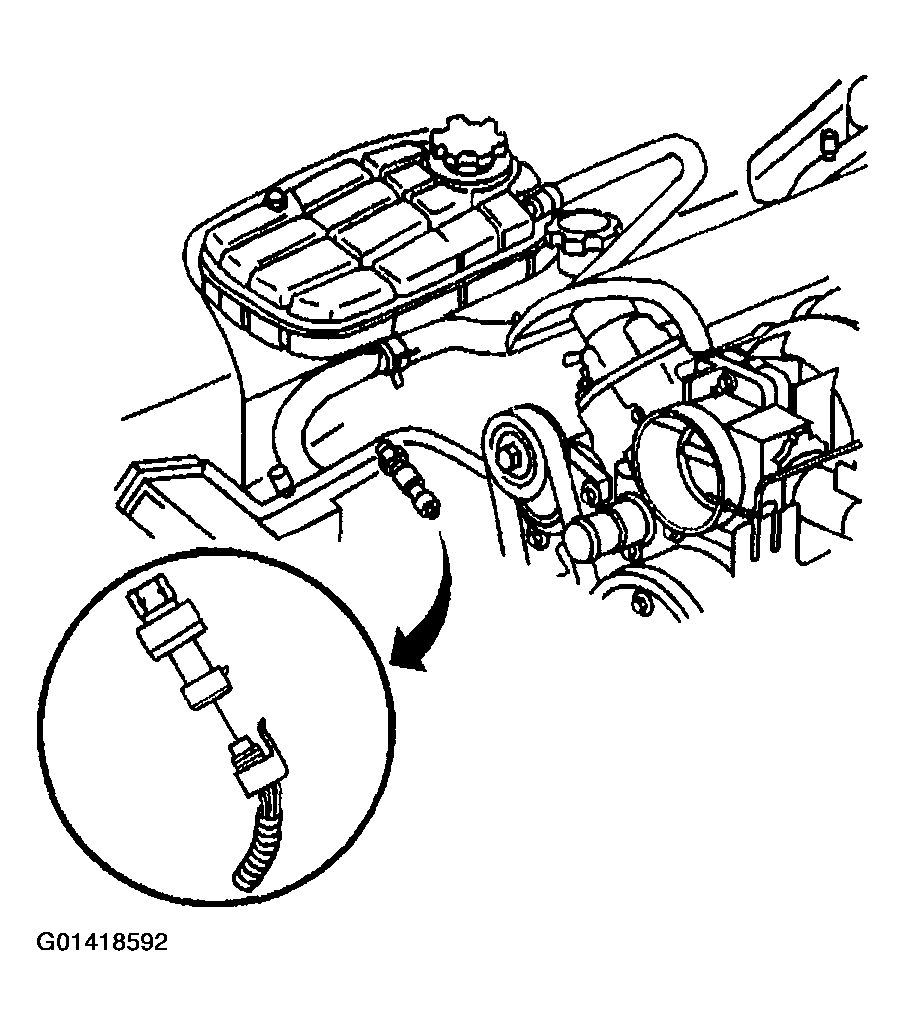

Fig 2: Connecting Pressure Sensor Electrical Connector
G01418592Courtesy of GENERAL MOTORS CORP.
