Removal & Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

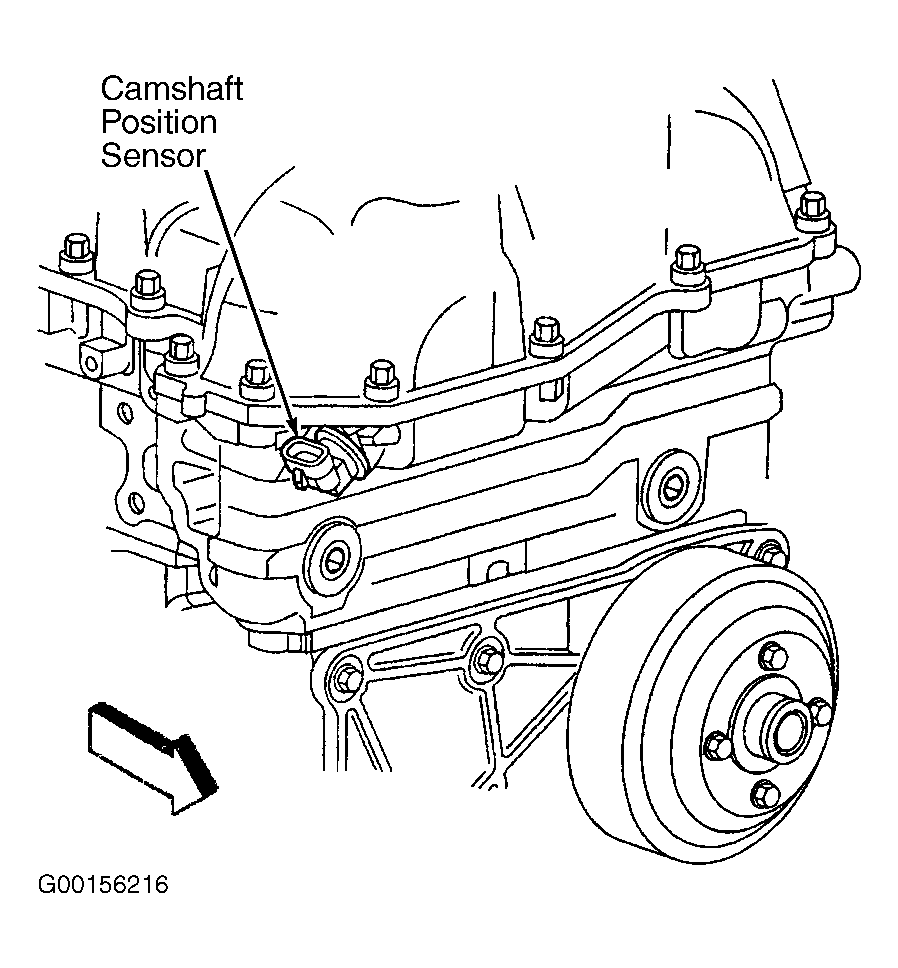

Disconnect Camshaft Position (CMP) sensor harness connector. See Fig 1. Remove CMP sensor retaining bolt and CMP sensor. To install, reverse removal procedure. Tighten CMP sensor retaining bolt to specification. See TORQUE SPECIFICATIONS .
