EVAP Canister: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

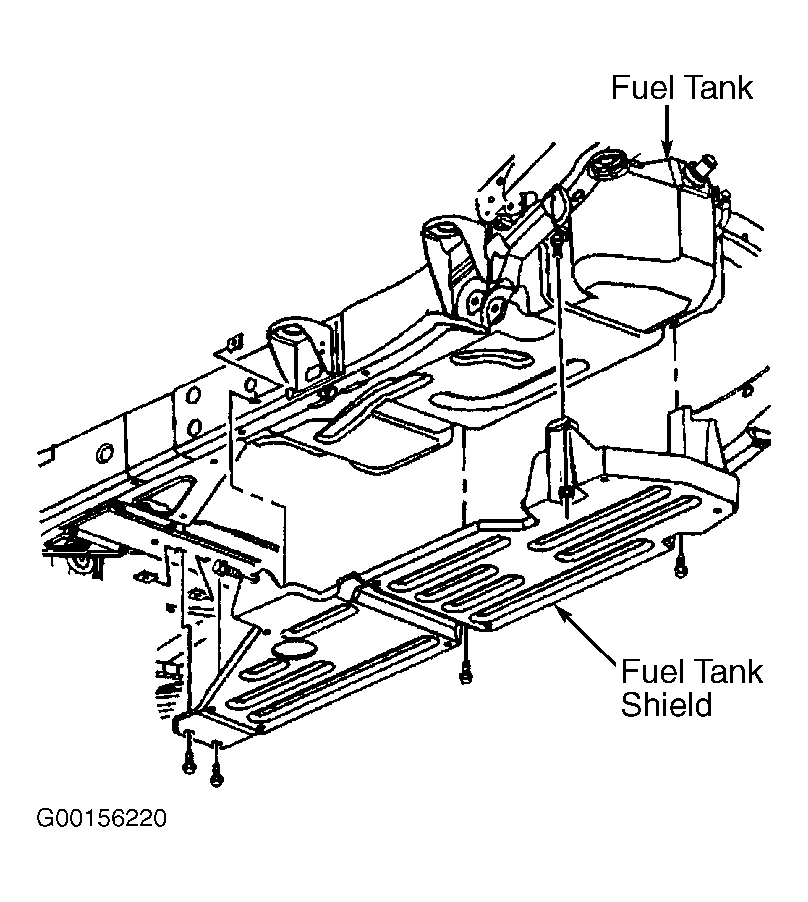

  1. Raise and support vehicle. Remove fuel tank shield (if equipped). See Figure. Disconnect EVAP vapor pipe and EVAP vent valve pipe from EVAP canister. See Figure.

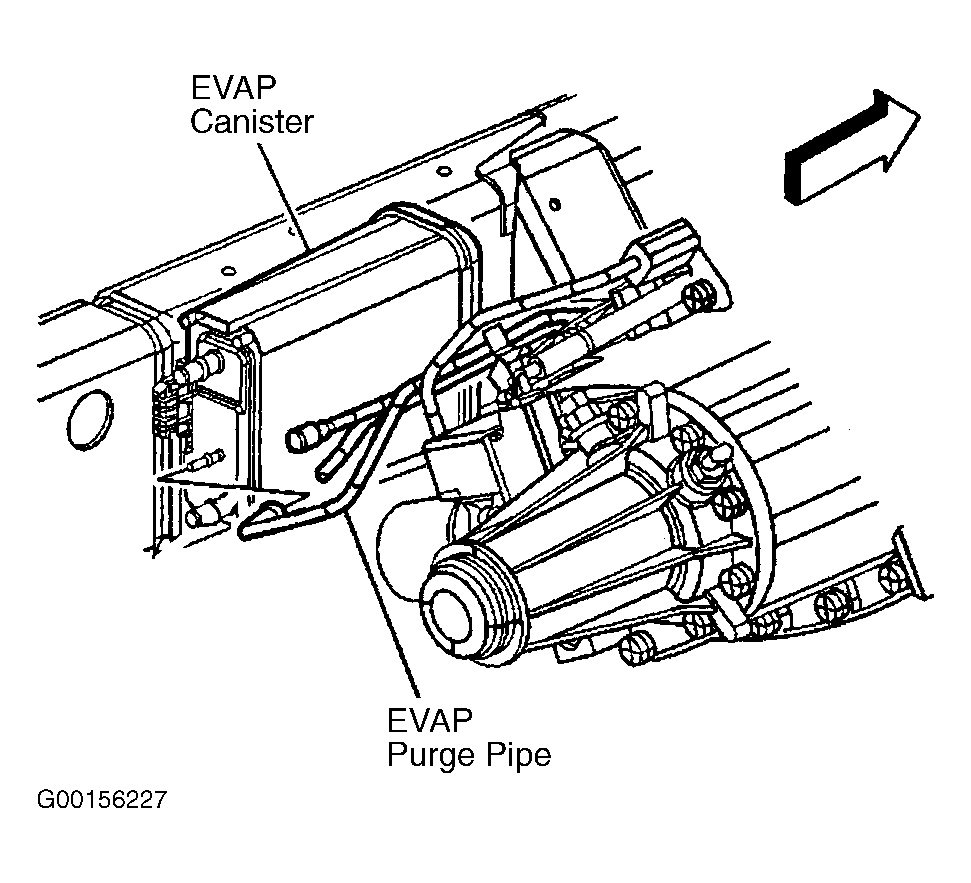

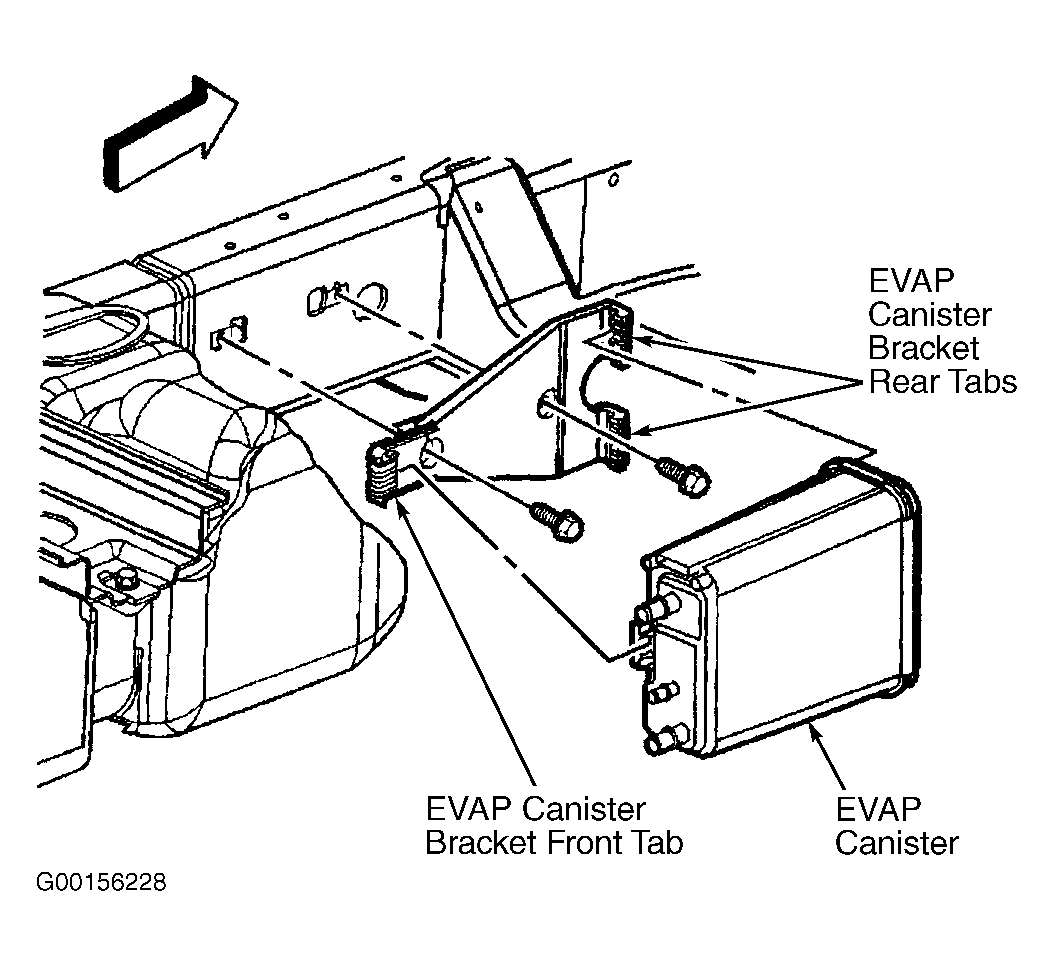

  2. Disconnect EVAP purge pipe from EVAP canister. See Figure. Move rear of EVAP canister forward in the EVAP canister bracket to release EVAP canister bracket rear tabs. See Figure. Remove EVAP canister from EVAP canister bracket front tab and remove EVAP canister.
