Water Outlet Installation

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

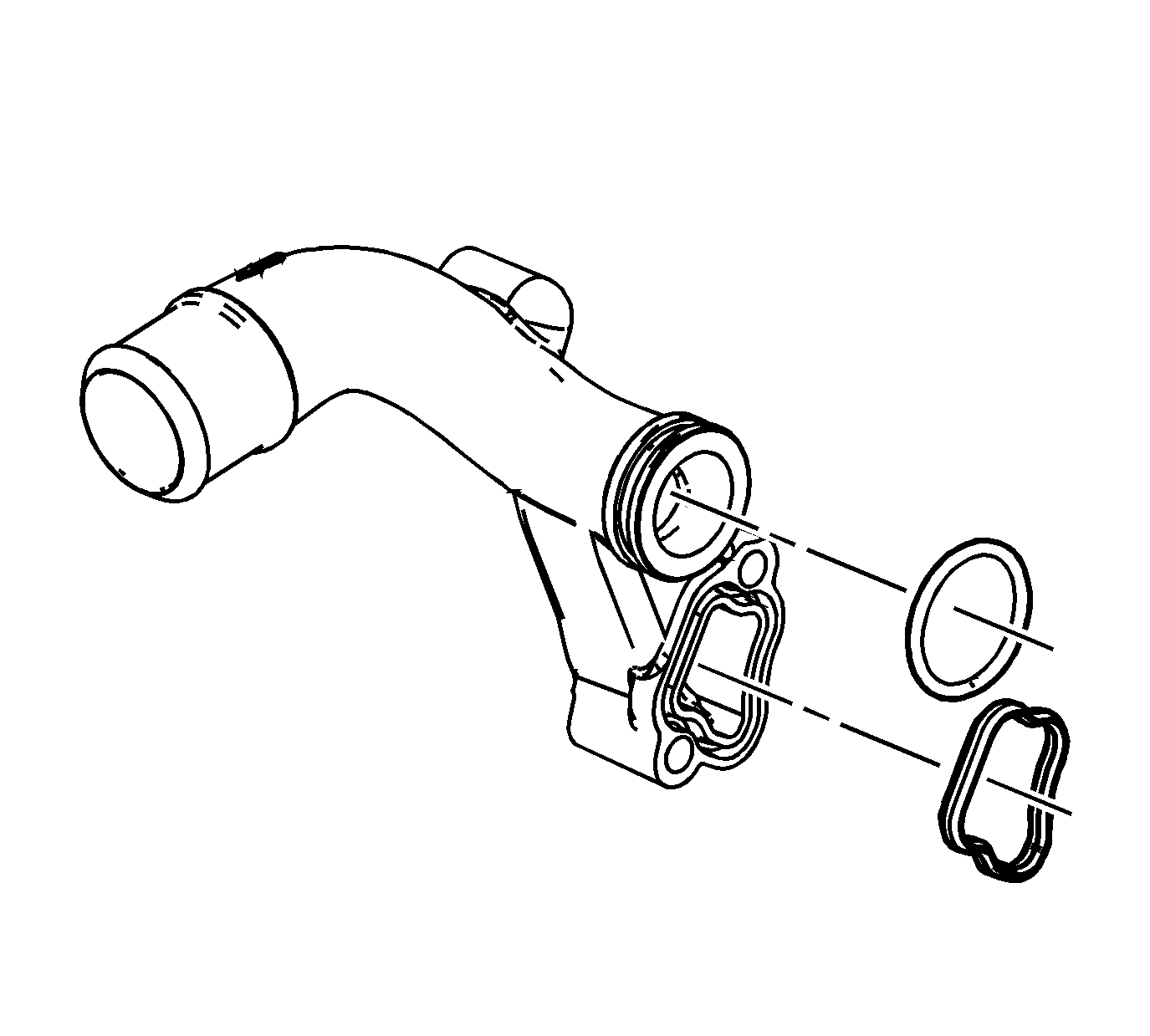

    Fig 1: Identifying Water Outlet Gasket And O-Ring
    GM1412149Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW gasket and O-ring onto the water outlet.

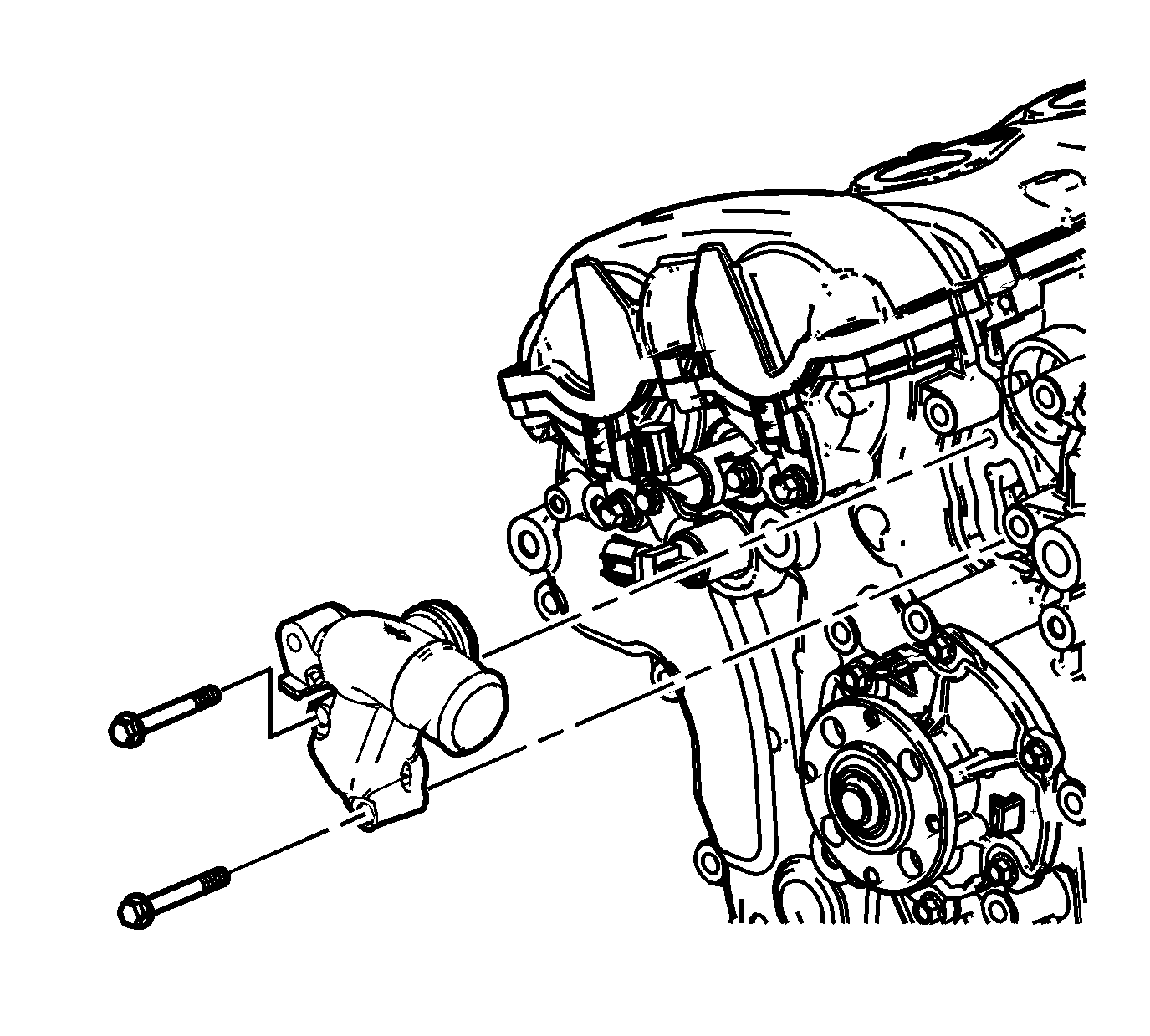

    2. Fig 2: Installing Water Outlet
    GM1412148Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the water outlet bolts.

    Tighten:  Tighten the water outlet bolts to 10 N.m (89 lb in).
