Starter Motor Installation

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

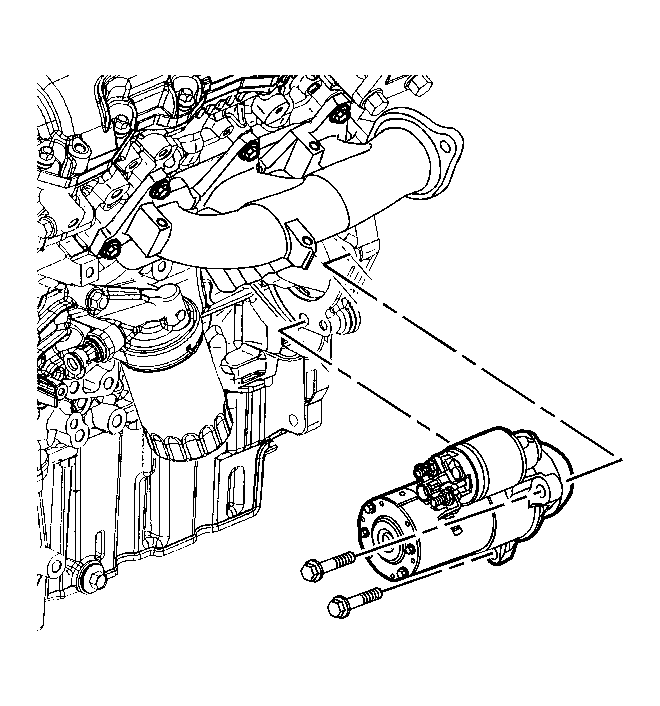

    Fig 1: View Of Starter Motor
    GM1395924Courtesy of GENERAL MOTORS CORP.
  1. Install the starter motor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the starter motor bolts.

    Tighten:  Tighten the starter motor bolts to 50 N.m (37 lb ft).
