Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW O-ring on the oil level indicator tube.

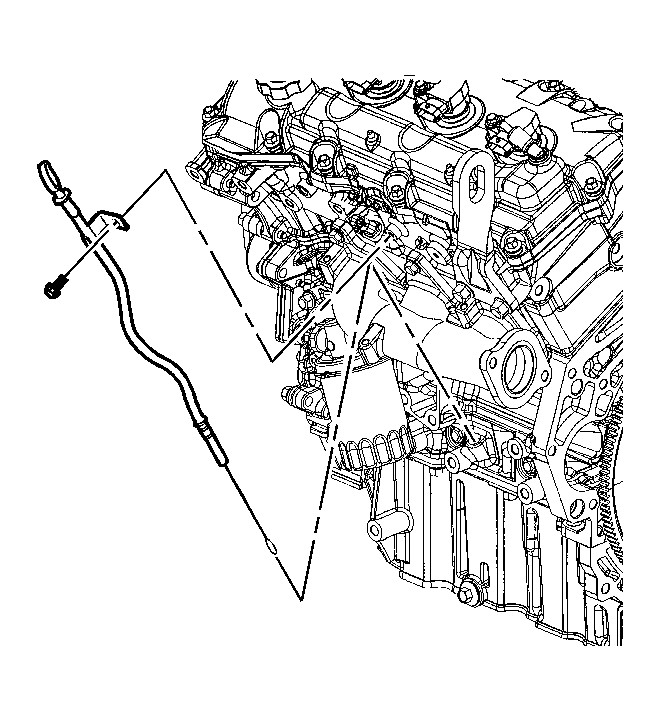

    2. Fig 1: View Of Oil Level Indicator And Tube
    GM1395941Courtesy of GENERAL MOTORS CORP.
  2. Install the oil level indicator and tube by sliding the tube down through the lower crankcase hole.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil level indicator tube bracket bolt.

    Tighten:  Tighten the oil level indicator tube bracket bolt to 10 N.m (89 lb in).
