Engine Verification Label

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The engine verification label is located in two places on the engine and consists of the broadcast code and bar code.

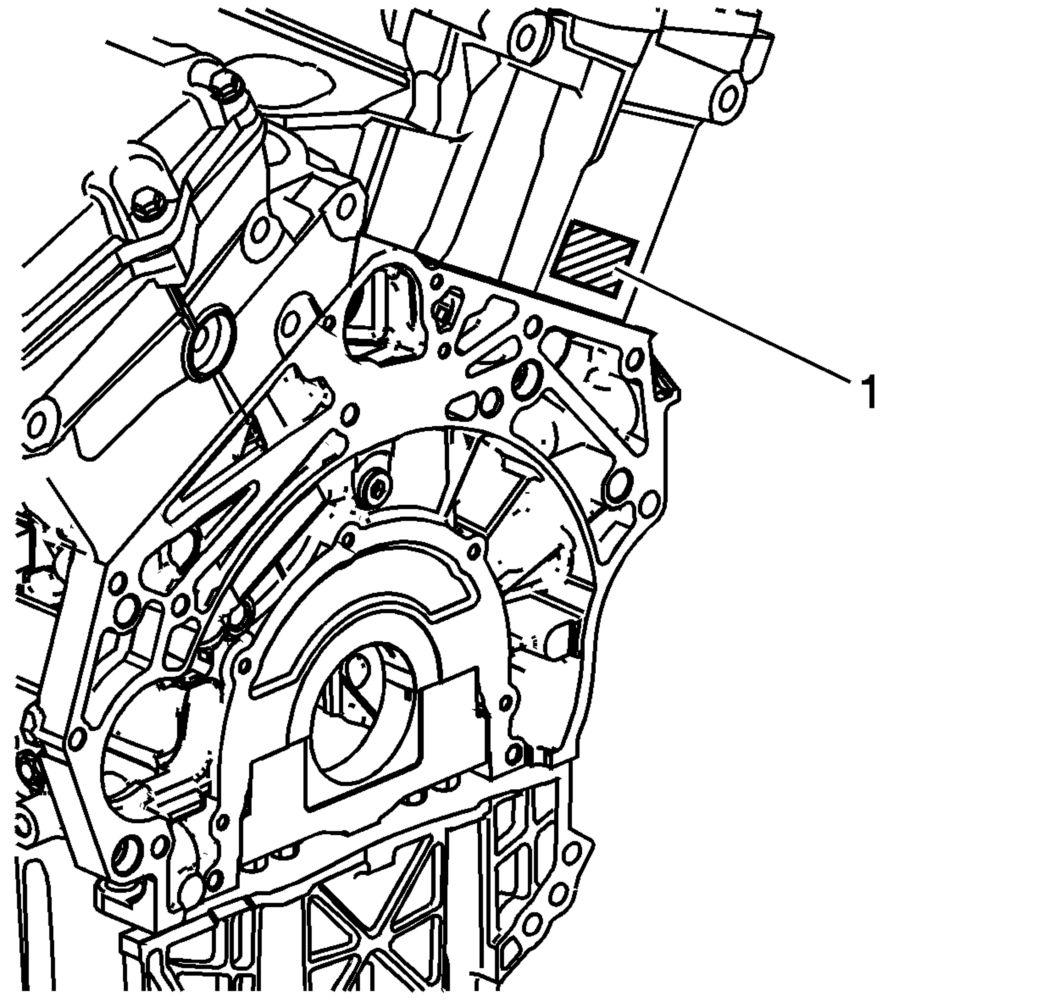

Fig 1: Locating Left Engine Verification Label

Courtesy of GENERAL MOTORS CORP.

One engine verification label (1) is located on the left side of the engine front cover below the exhaust camshaft position sensor.

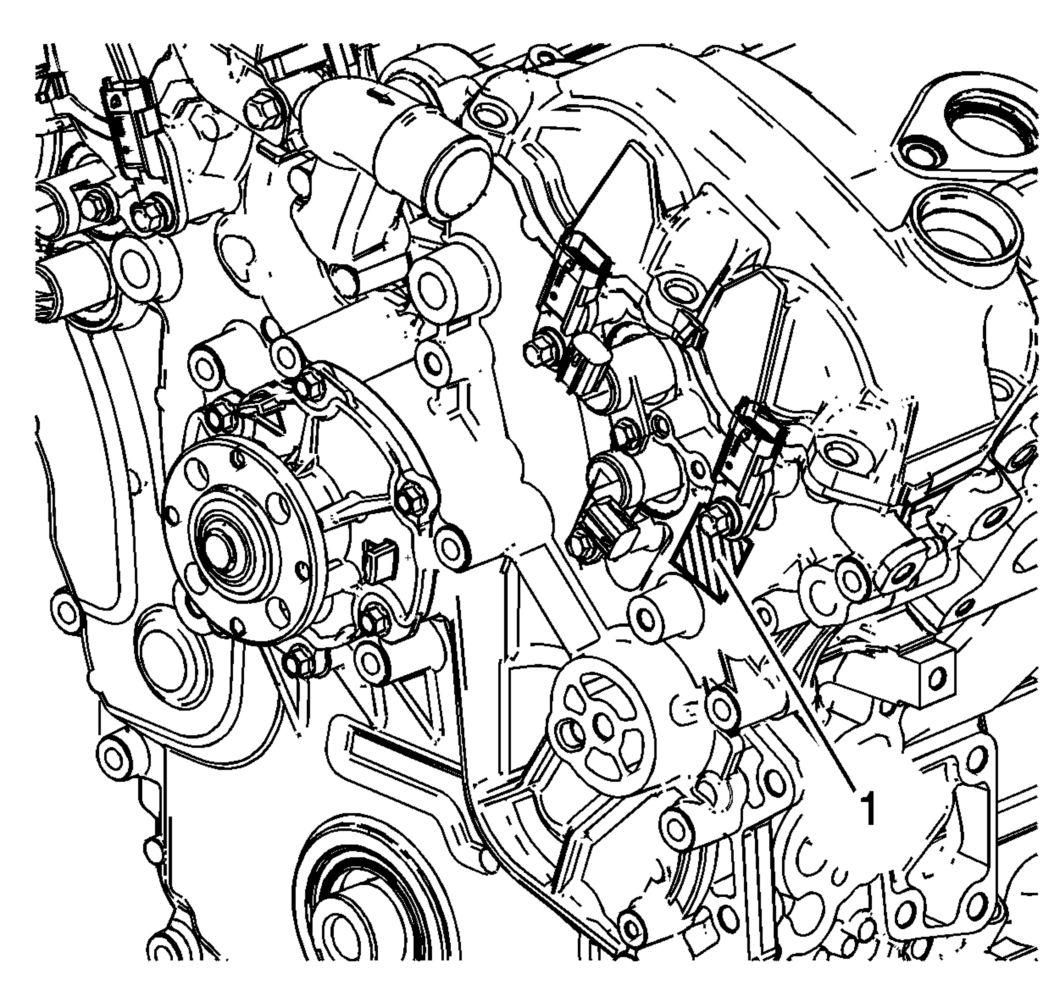

Fig 2: Identifying Engine Verification Label On Right Cylinder Head

Courtesy of GENERAL MOTORS CORP.

Another engine verification label (1) is located on the rear of the right cylinder head.
