Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

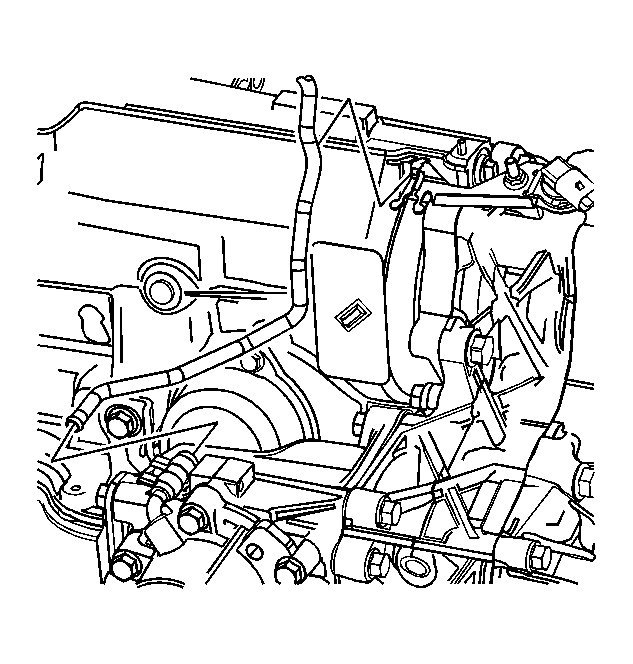

    Fig 1: Identifying Vent Hose Clamp
    GM1409480Courtesy of GENERAL MOTORS CORP.
  1. Install the vent hose.
  2. Install the vent hose to the retainer.
  3. Install the vent hose to the transfer case.
    4. Fig 2: Supporting Powertrain With Utility Stand
    GM1388664Courtesy of GENERAL MOTORS CORP.
  4. Raise the powertrain until the frame insulators contact the chassis.
  5. Install the frame rear bolts. Refer to Frame Replacement - Front (W/AWD) or Frame Replacement - Front (W/FWD) in Frame and Underbody.
  6. Remove the utility stand.
  7. Connect the intermediate steering shaft to the steering gear. Refer to Intermediate Steering Shaft Replacement in Steering Wheel and Column.
  8. Install the catalytic converter. Refer to Catalytic Converter Replacement in Engine Exhaust.
  9. Lower the vehicle.

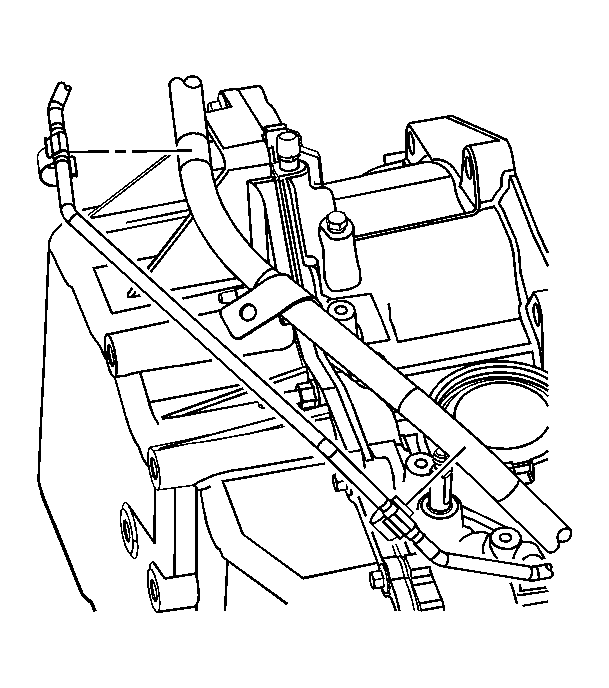

    10. Fig 3: View Of Transfer Case Vent Hose
    GM1409477Courtesy of GENERAL MOTORS CORP.
  10. Install the transfer case vent hose to the transmission fill tube.
  11. Install the air inlet duct. Refer to Air Cleaner Intake Duct Replacement in Engine Controls - 3.6L (LY7).
