Spring Shackle (C/K Models): Installation
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2000 GMC Yukon, 2000 GMC Pickup, 2000 GMC Cab & Chassis, 2000 GMC C3500 HD, and 2000 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not tighten the fasteners until all the parts have been assembled.
- Install the shackle to the vehicle.

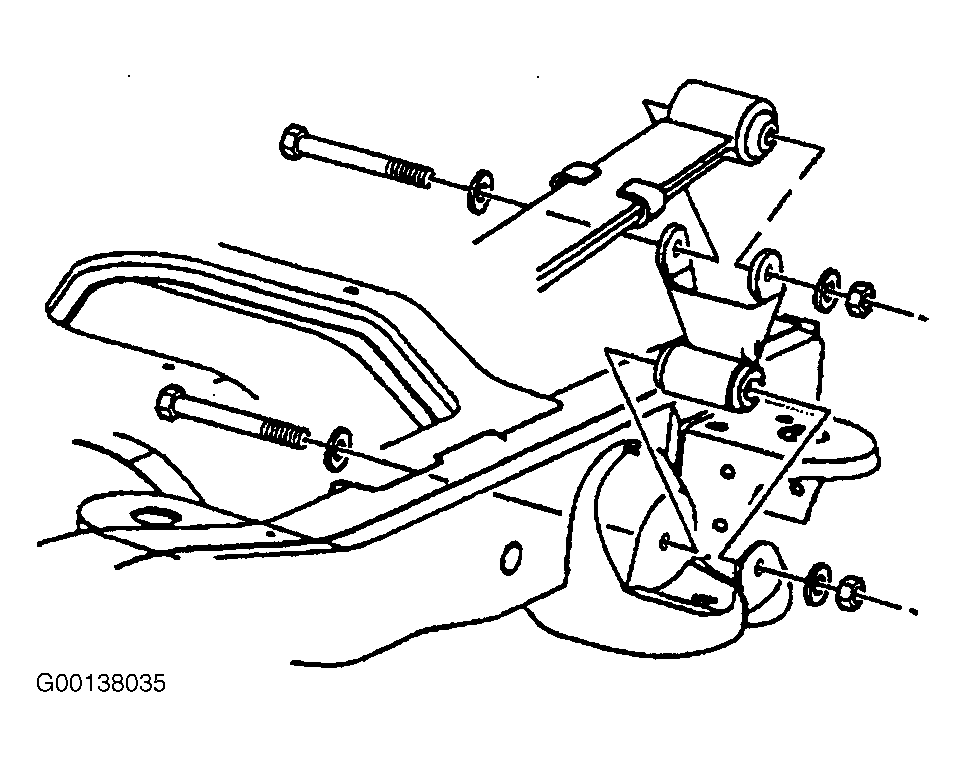

- Install the spring bolt, the washers, and the nut to the shackle. See Figure .
- Install the rear bracket bolt, the washers, and the nut to the shackle. See Figure .
- Tighten the leaf spring to bracket nuts, the leaf spring to shackle nut, and the shackle to bracket nuts. See TORQUE SPECIFICATIONS .
- Adjust the spring height between the top surface of the axle jounce pad and the bottom surface of the frame jounce bracket. See Fig 1 .
- Lower the vehicle.
