Leaf Spring (Single Wheel Spring Assembly): Removal

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2000 GMC Yukon, 2000 GMC Pickup, 2000 GMC Cab & Chassis, 2000 GMC C3500 HD, and 2000 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Support the rear axle independently in order to relieve the tension on the leaf springs.
  3. Remove the U-bolt nuts (6). See Fig 1 .
  4. Remove the washers (5).
  5. Remove the anchor plate (7).
  6. Remove the U-bolts (1 and 4).
  7. Remove the spacer (8), loosen the shackle to spring nut.
  8. Remove the shackle (3), the shackle to rear bracket nut, the washers, and the bolt. See Fig 1 .
  9. Remove the spring to front bracket.
  10. Remove the nut, the washer, and the bolt from the spring to front bracket.
  11. Remove the spring assembly from the vehicle. See Fig 2 .

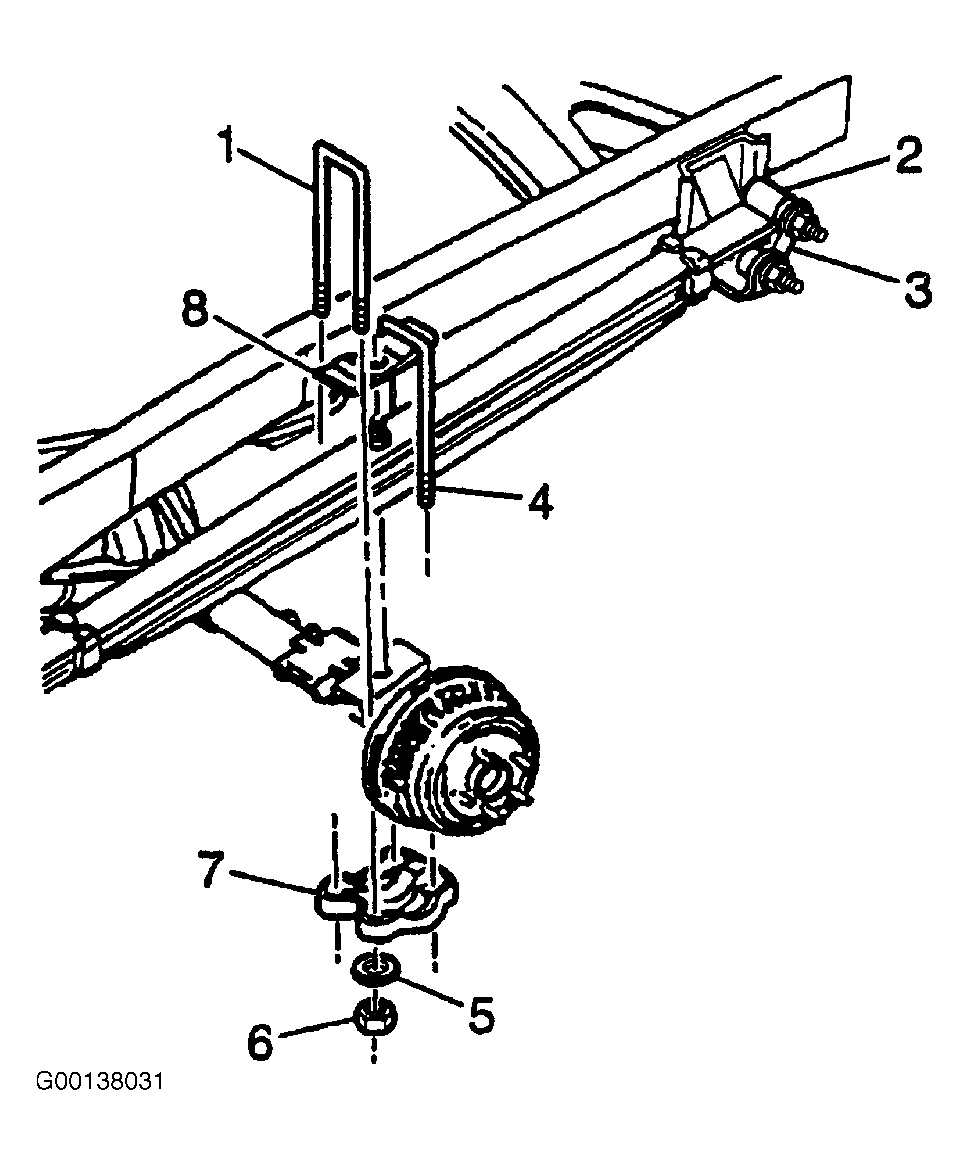

Fig 1: Removing Leaf Spring (Single Rear Wheels)
G00138031Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing Spring Assembly
G00138032Courtesy of GENERAL MOTORS CORP.
