Component Locations

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2000 GMC Yukon, 2000 GMC Pickup, 2000 GMC Cab & Chassis, 2000 GMC C3500 HD, and 2000 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

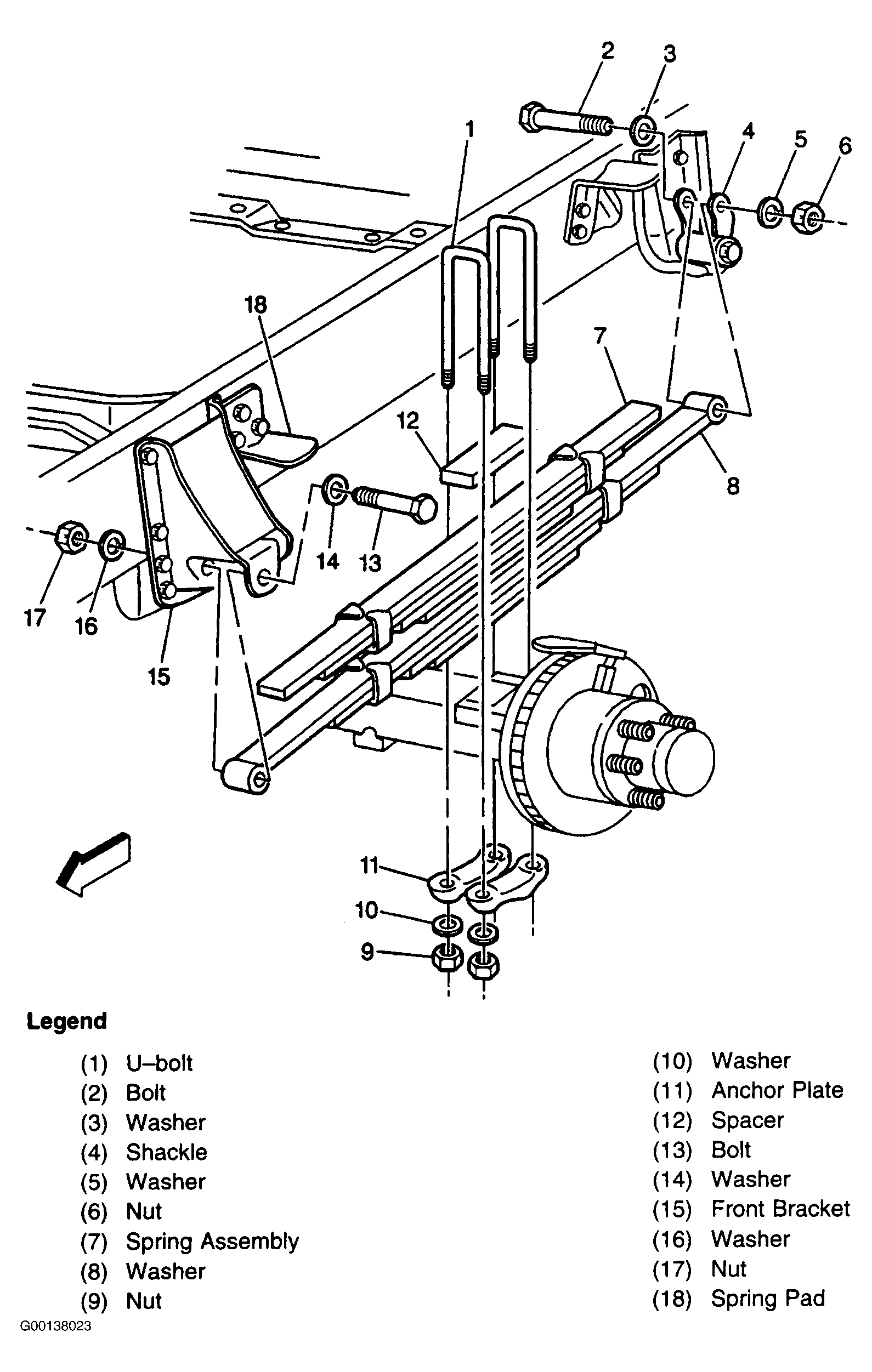

Fig 1: Exploded View Of Leaf Spring Components (C3500 HD)

Courtesy of GENERAL MOTORS CORP.

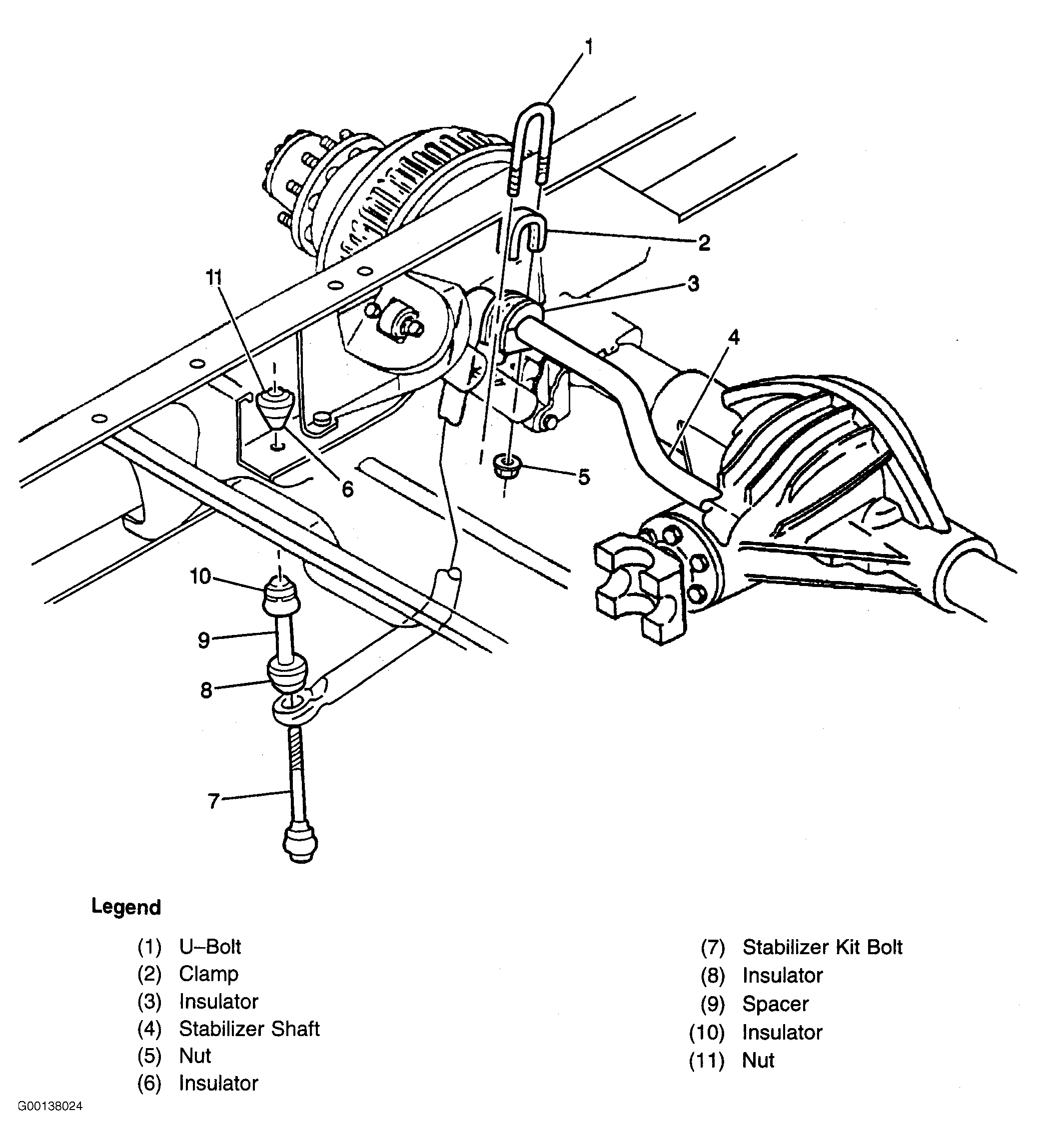

Fig 2: Exploded View Of Stabilizer Shaft & Components (C3500 HD)

Courtesy of GENERAL MOTORS CORP.

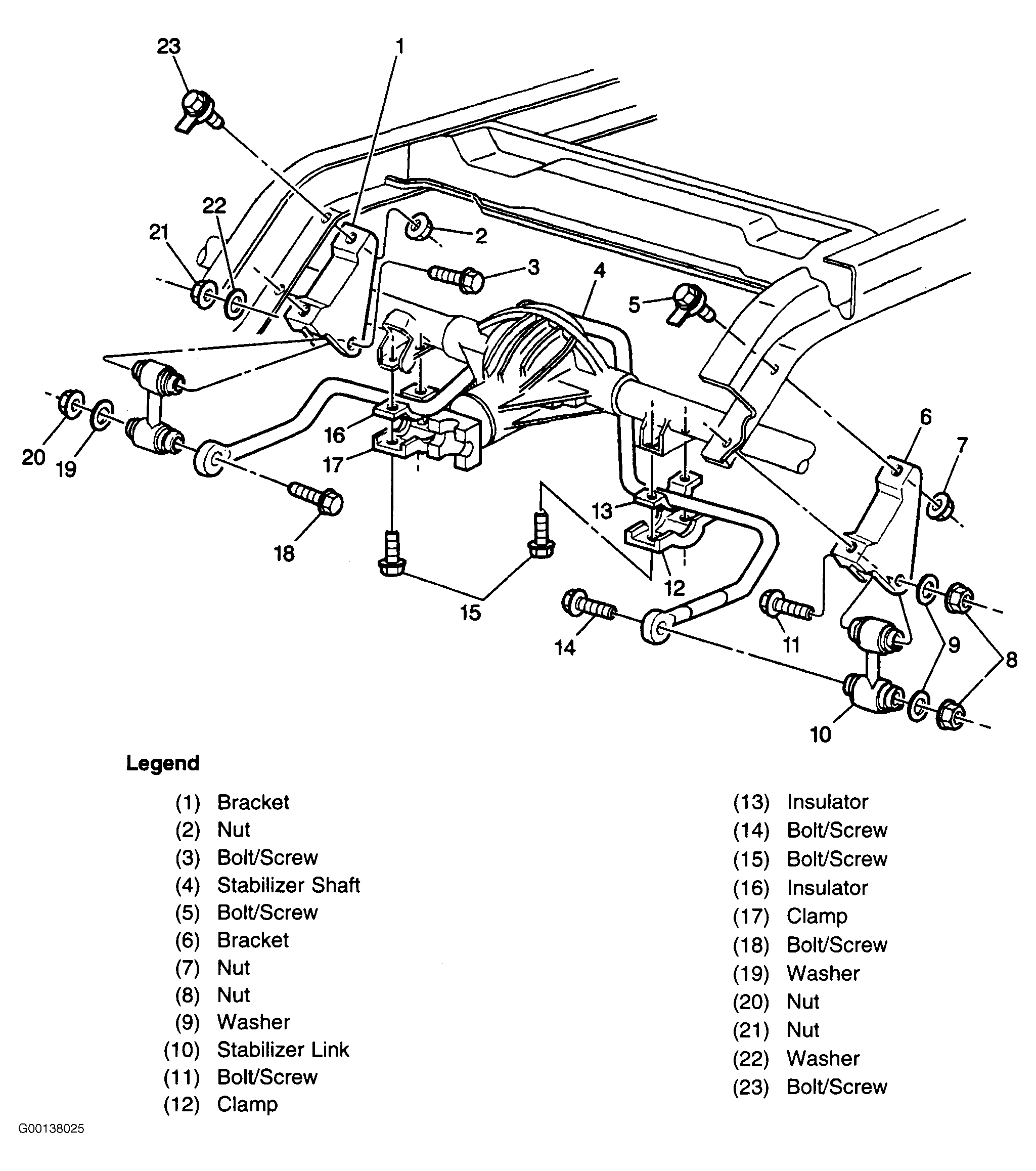

Fig 3: Exploded View Of Stabilizer Shaft & Components (C/K 3)

Courtesy of GENERAL MOTORS CORP.
