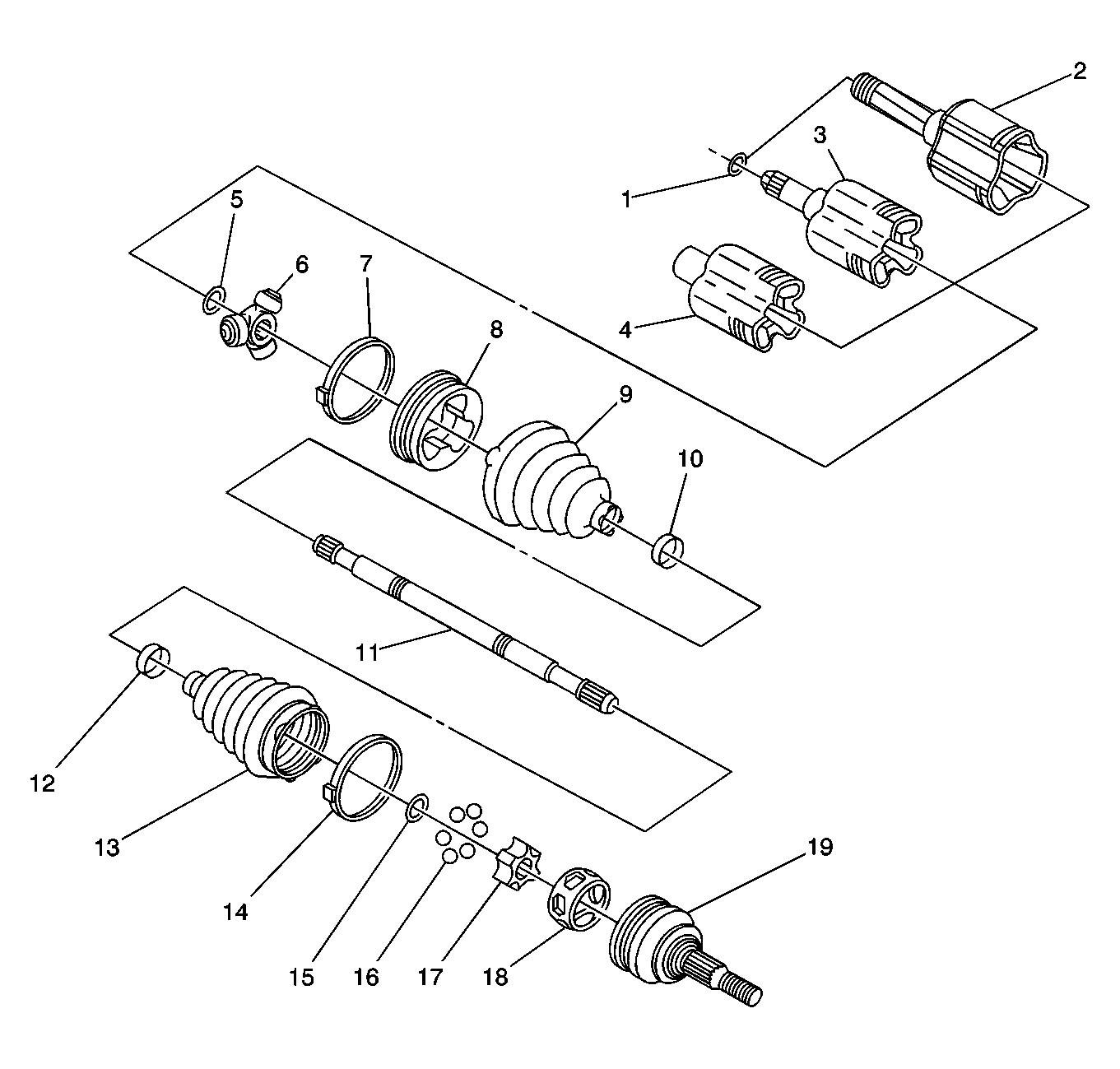

Wheel Drive Shafts Disassembled Views (M15, M76)
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Retaining Ring, Right Tripot Joint Race |
| 2 | Tripot Joint Race, Right AWD |
| 3 | Tripot Joint Race, Right FWD |
| 4 | Tripot Joint Race - Left |
| 5 | Retaining Ring, Tripot Spider |
| 6 | Tripot Joint Spider |
| 7 | Clamp, Tripot Joint Seal Outer |
| 8 | Tripot Joint Bushing |
| 9 | Tripot Joint Seal |
| 10 | Clamp, Tripot Joint Seal Inner |
| 11 | Bar, Wheel Drive Shaft |
| 12 | Clamp, CV Joint Seal Inner |
| 13 | CV Joint Seal |
| 14 | Clamp, CV Joint Seal Outer |
| 15 | Retaining Ring, CV Joint |
| 16 | Bearing Rollers, CV Joint |
| 17 | Inner Race, CV Joint |
| 18 | Bearing Cage, CV Joint |
| 19 | Outer Bearing Race, CV Joint |
