Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Brake Fluid Irritant Caution in Cautions and Notices.
NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice in Cautions and Notices.
  1. Inspect the fluid level in the brake master cylinder reservoir.
  2. If the brake fluid level is midway between the maximum-full point and the minimum allowable level, then no brake fluid needs to be removed from the reservoir before proceeding. If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, then remove brake fluid to the midway point before proceeding.
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  4. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  5. Install two nuts to retain the rotor to the hub.

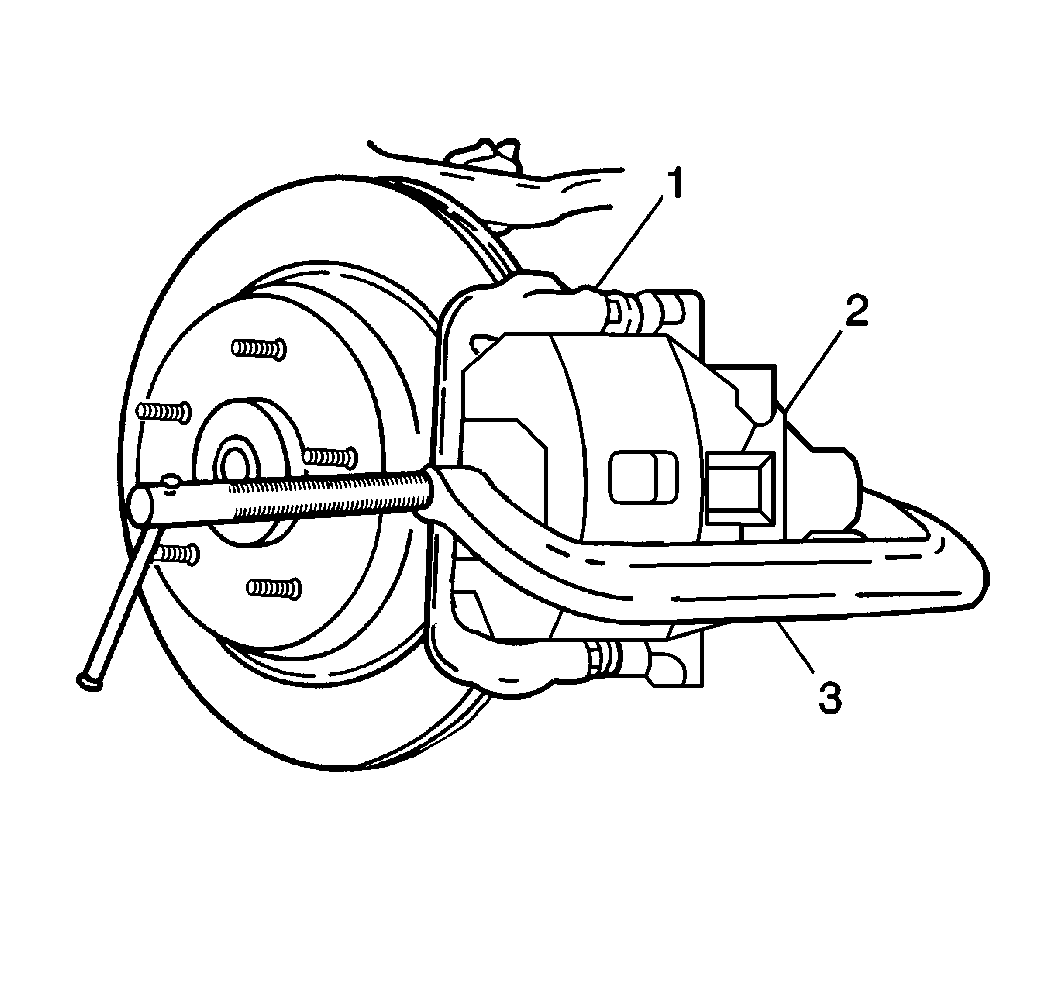

    6. Fig 1: Pushing In Brake Caliper Piston
    GM176947Courtesy of GENERAL MOTORS CORP.
  6. Install a large C-clamp (3) over the top of the brake caliper and against the back of the outboard brake pad.
  7. Tighten the C-clamp until the caliper piston is pushed into the caliper bore enough to slide the caliper off the rotor.
    8. Fig 2: Identifying Brake Hose & Components
    GM176035Courtesy of GENERAL MOTORS CORP.
  8. Remove the brake hose bolt (1).
  9. Remove the brake hose (2) from the brake caliper.
  10. Remove and discard the two copper brake hose gaskets (3). These gaskets may be stuck to the brake caliper and/or the brake hose end.
  11. Plug the openings in the brake caliper and the brake hose in order to prevent brake fluid loss and contamination.
  12. Clean off any dirt or corrosion on the brake caliper near the brake hose fitting.
    13. Fig 3: Exploded View Of Rear Brake Caliper Components
    GM176945Courtesy of GENERAL MOTORS CORP.
  13. Remove the brake caliper bolts (1,3).
  14. Remove the brake caliper (15) from the brake caliper bracket (12).
  15. Inspect the caliper bracket bolt boot on the caliper bracket for the following conditions:
