Section 1143 (Drive Axle - Limited-Slip Differential)
>>
Schematic and Routing Diagrams
>>
Differential Lock Schematics
Differential Lock Schematics
WARNING:
This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

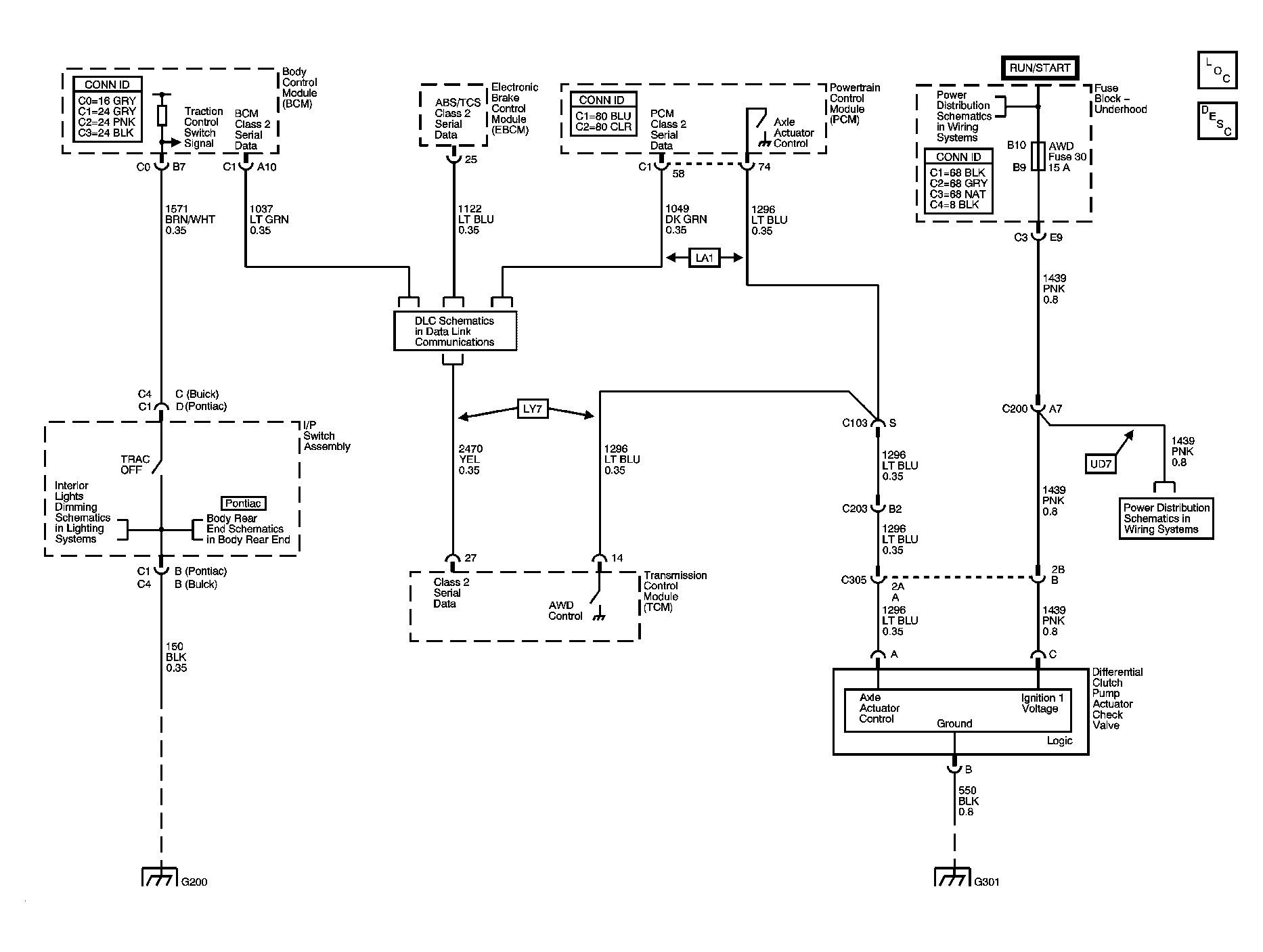

Fig 1: Differential Lock Schematic
Courtesy of GENERAL MOTORS CORP.
