Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

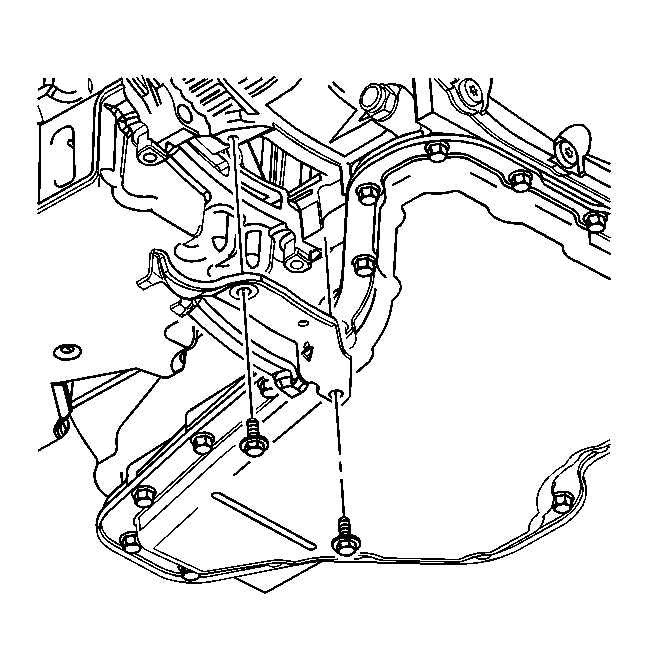

- Install the torque converter cover.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
- Install the torque converter cover bolts.
Tighten:
Tighten the bolts to 8 N.m (71 lb in).
- Lower the vehicle.
