Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to Case Side Cover Replacement .

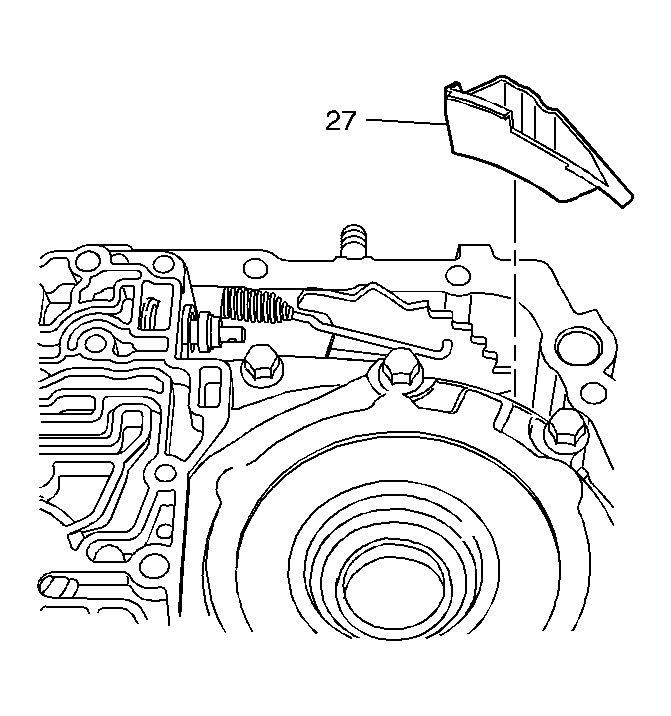

    2. Fig 1: Identifying Oil Reservoir Weir
    GM48191Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil reservoir weir (27).
