Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Do NOT place the fluid filler tube seal on the fluid filler tube when installing the tube or damage to the seal will result.
    Fig 1: Identifying Fluid Filler Tube Seal
    GM368794Courtesy of GENERAL MOTORS CORP.
  1. Install the fluid filler tube seal in the transaxle.
  2. Install the fluid filler tube.

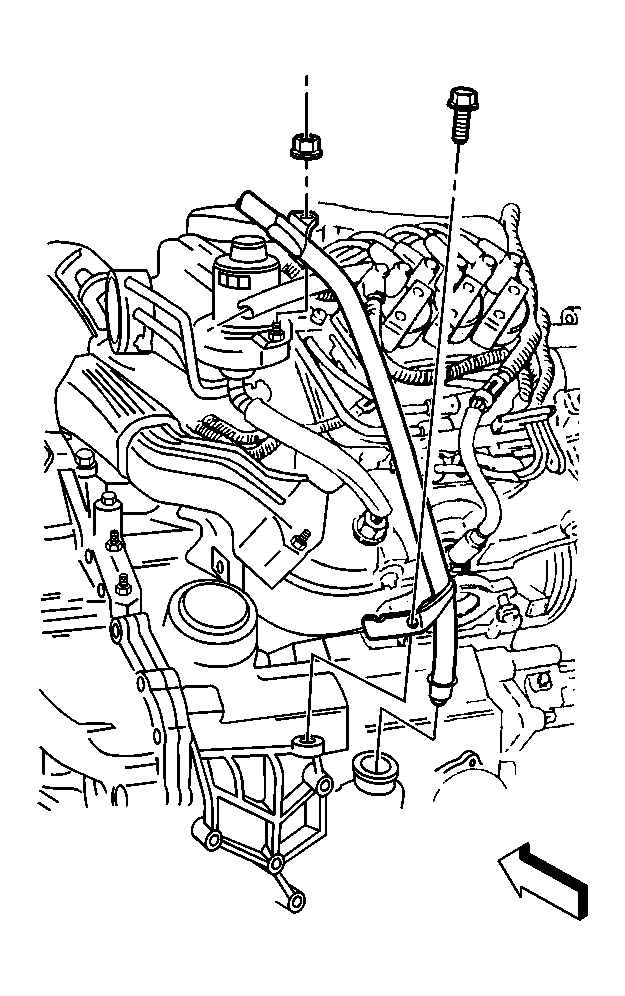

    3. Fig 2: Locating Fluid Filler Tube
    GM368795Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the fluid filler tube bolt.

    Tighten:  Tighten the bolt to 13 N.m (115 lb in).

  4. Install the fluid filler tube nut.

    Tighten:  Tighten the nut to 13 N.m (115 lb in).

  5. Inspect and adjust the fluid level as needed. Refer to the following information:
