Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss.

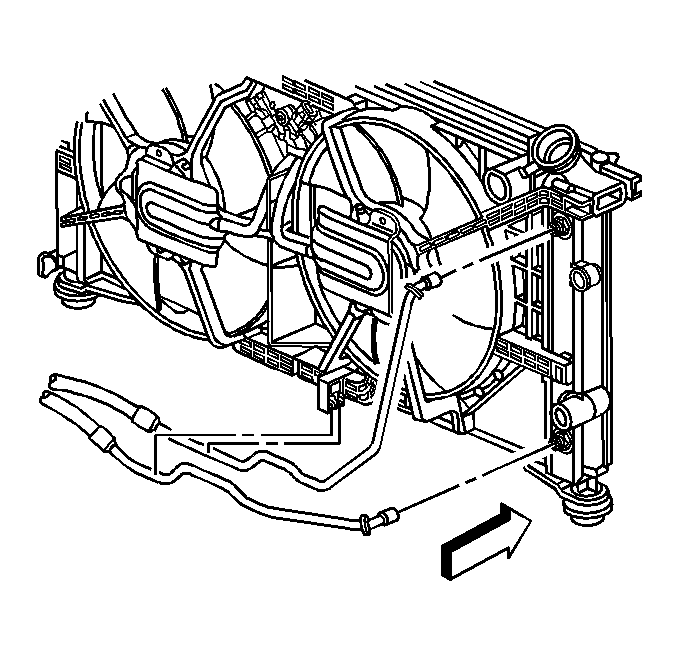

    Fig 1: View Of TOC Inlet Hose To Radiator
    GM823227Courtesy of GENERAL MOTORS CORP.
  1. Install the TOC hoses to the vehicle.
  2. Connect the TOC hoses to the radiator support retainer.
  3. Connect the TOC inlet hose to the radiator. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

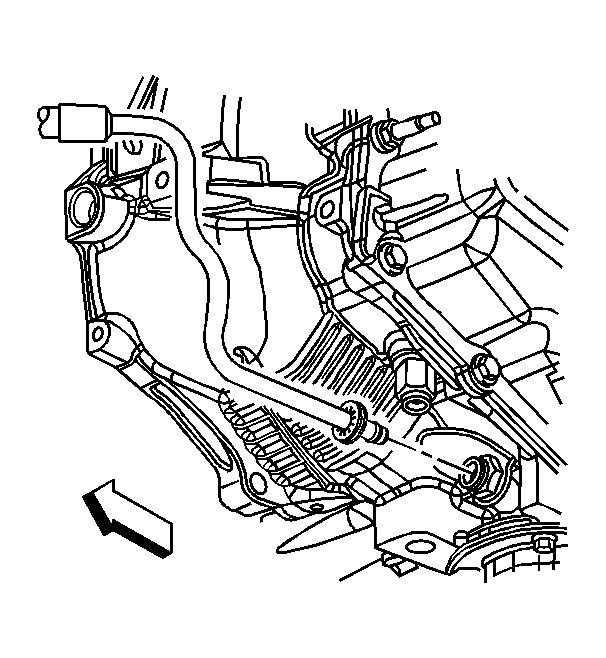

    4. Fig 2: Locating TOC Inlet Hose To Transaxle
    GM823224Courtesy of GENERAL MOTORS CORP.
  4. Connect the TOC inlet hose to the transaxle. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

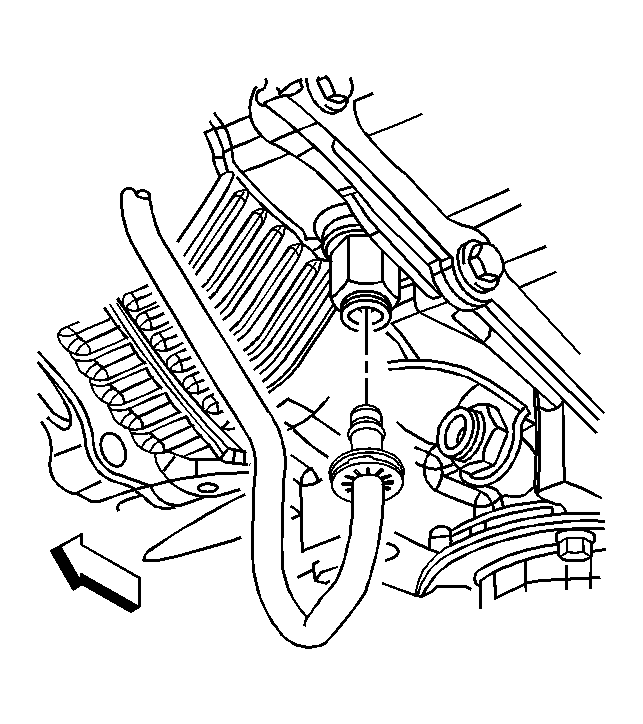

    5. Fig 3: Identifying TOC Outlet Hose
    GM823225Courtesy of GENERAL MOTORS CORP.
  5. Connect the TOC outlet hose to the transaxle. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .
    6. Fig 4: View Of TOC Hose Retainer Bolt
    GM824985Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the TOC hose retainer and the bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  7. Lower the vehicle.
  8. Connect the TOC outlet hose to the top side of the radiator. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .
  9. Adjust the fluid level. Refer to the following information.
