Removal & Installation (4.0L)
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue and 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

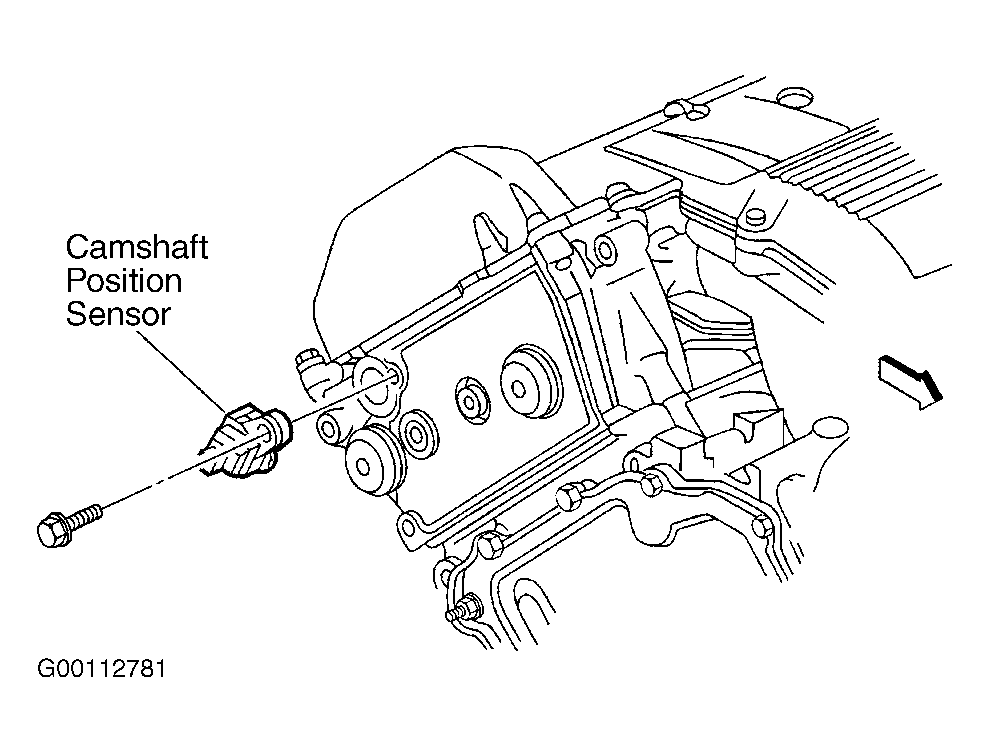

Remove the Camshaft Position (CMP) sensor electrical connector. See Fig 1. Remove the CMP retaining bolt. Remove the CMP sensor. Inspect the CMP sensor "O" ring for wear or damage. If a problem is found, replace the "O"ring. To install, reverse removal procedure. Lubricate the CMP sensor "O" ring with engine oil. Tighten CMP sensor bolt to specification. See TORQUE SPECIFICATIONS .
