Removal & Installation (Intrigue 3.5L - Bank 1)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue and 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

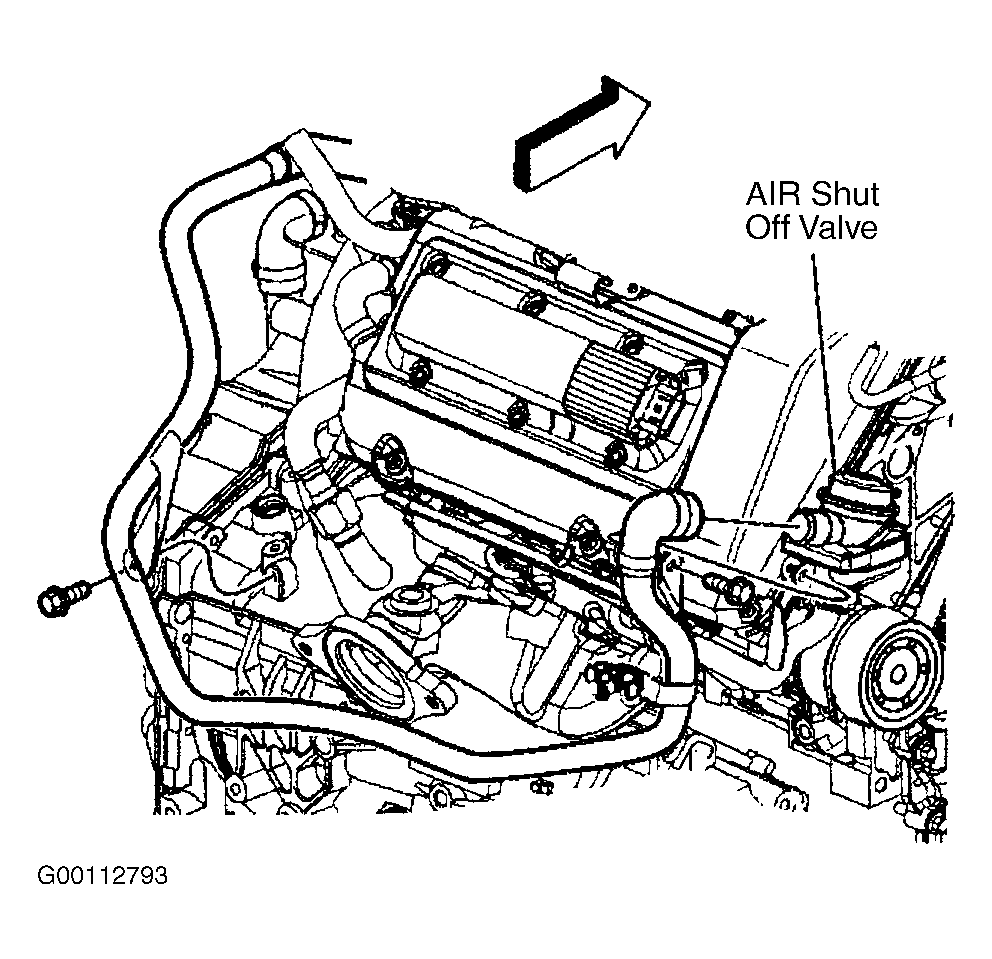

  1. Bank 1 is the cylinder head that is closest to rear of engine compartment. Remove the coolant recovery tank. Remove the drive belt. Remove the drive belt tensioner bolt from the cylinder head. Remove the drive belt tensioner. Remove the vacuum line from Secondary Air Injection (AIR) shut off valve. See Figure.
  2. Remove the shut off valve to the outlet pipe and bracket fasteners. Remove the shut off valve from the bracket and hose. Clean the gasket surfaces as necessary. To install, reverse removal procedure. Tighten tensioner bolt to specification. See TORQUE SPECIFICATIONS .
