Removal & Installation (3.5L)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue and 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Secondary Air Injection (AIR) pump is located under front left side of vehicle. See Fig 1. Raise and support vehicle. Remove the left fascia extension. See Fig 2.
Compress the pinch clamp and remove the outlet hose from the pump. Remove the inlet hose from the air pump. Remove the air pump nuts. Reposition pump to gain access to the electrical connector. Disconnect the pump electrical connector. Remove the pump from the vehicle. Transfer parts as necessary.
To install, reverse removal procedure. Tighten air pump nuts to specification. See TORQUE SPECIFICATIONS .

Fig 1: Locating Secondary Air Injection Pump (3.5L)

Courtesy of GENERAL MOTORS CORP.

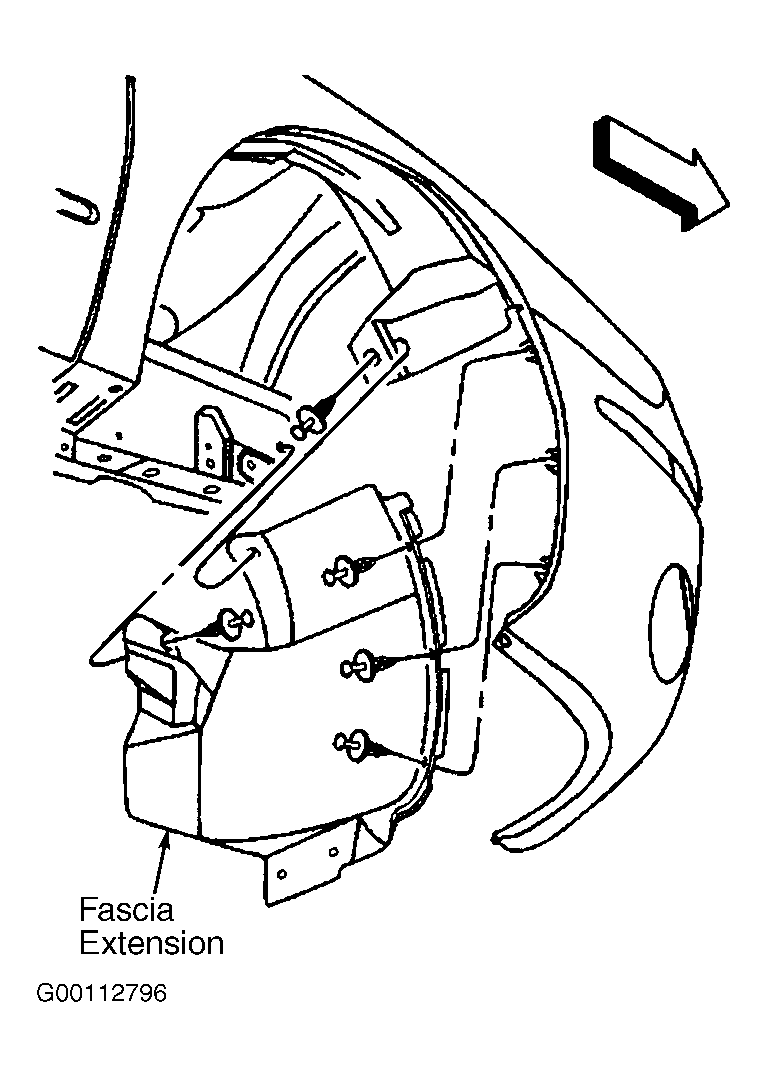

Fig 2: Removing Fascia Extension (Right Side Shown)

Courtesy of GENERAL MOTORS CORP.
