Hydraulic Brakes Component Views
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

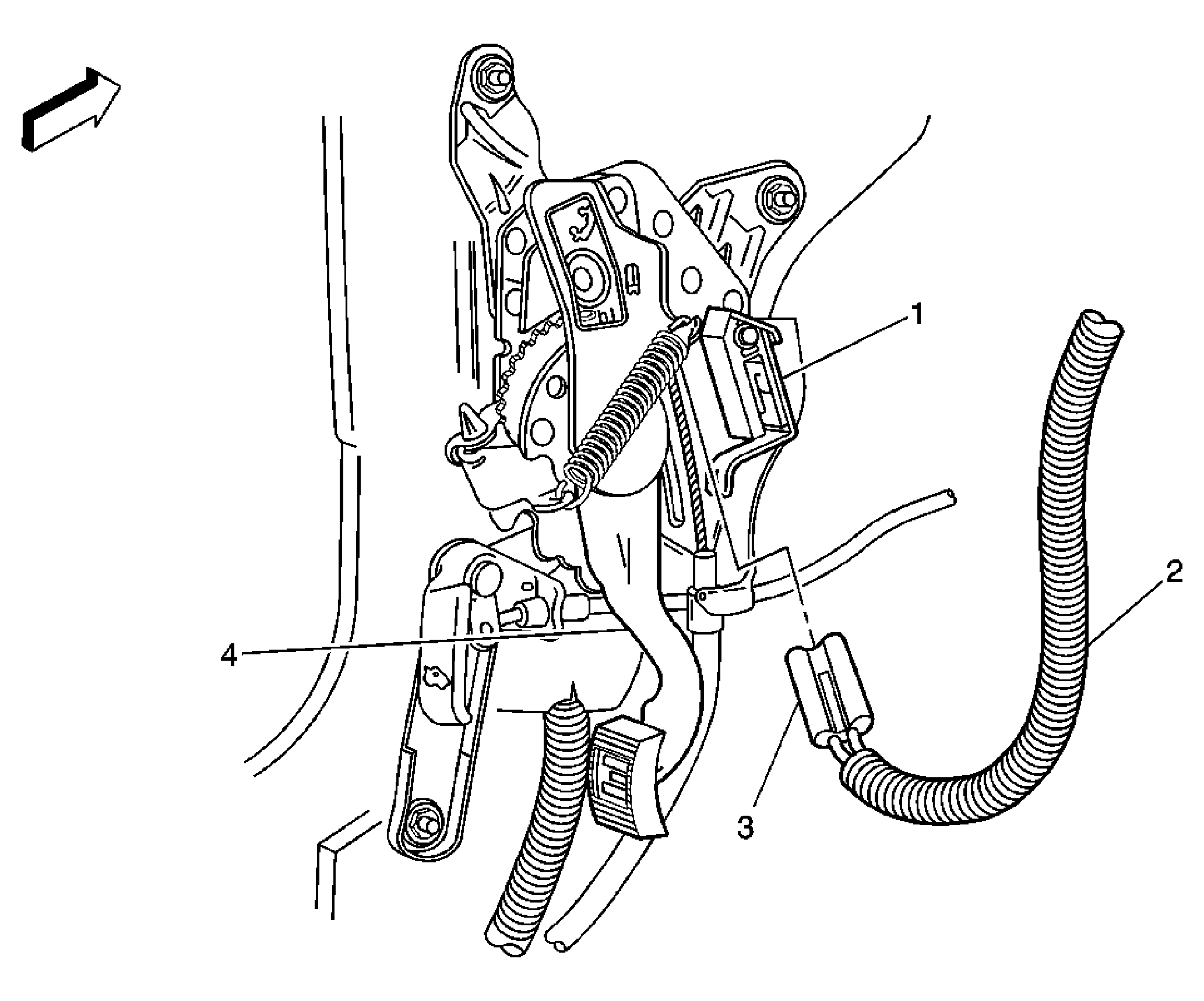

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Park Brake Switch |
| 2 |
I/P Wiring Harness |
| 3 |
Park Brake Switch Connector |
| 4 |
Parking Brake |

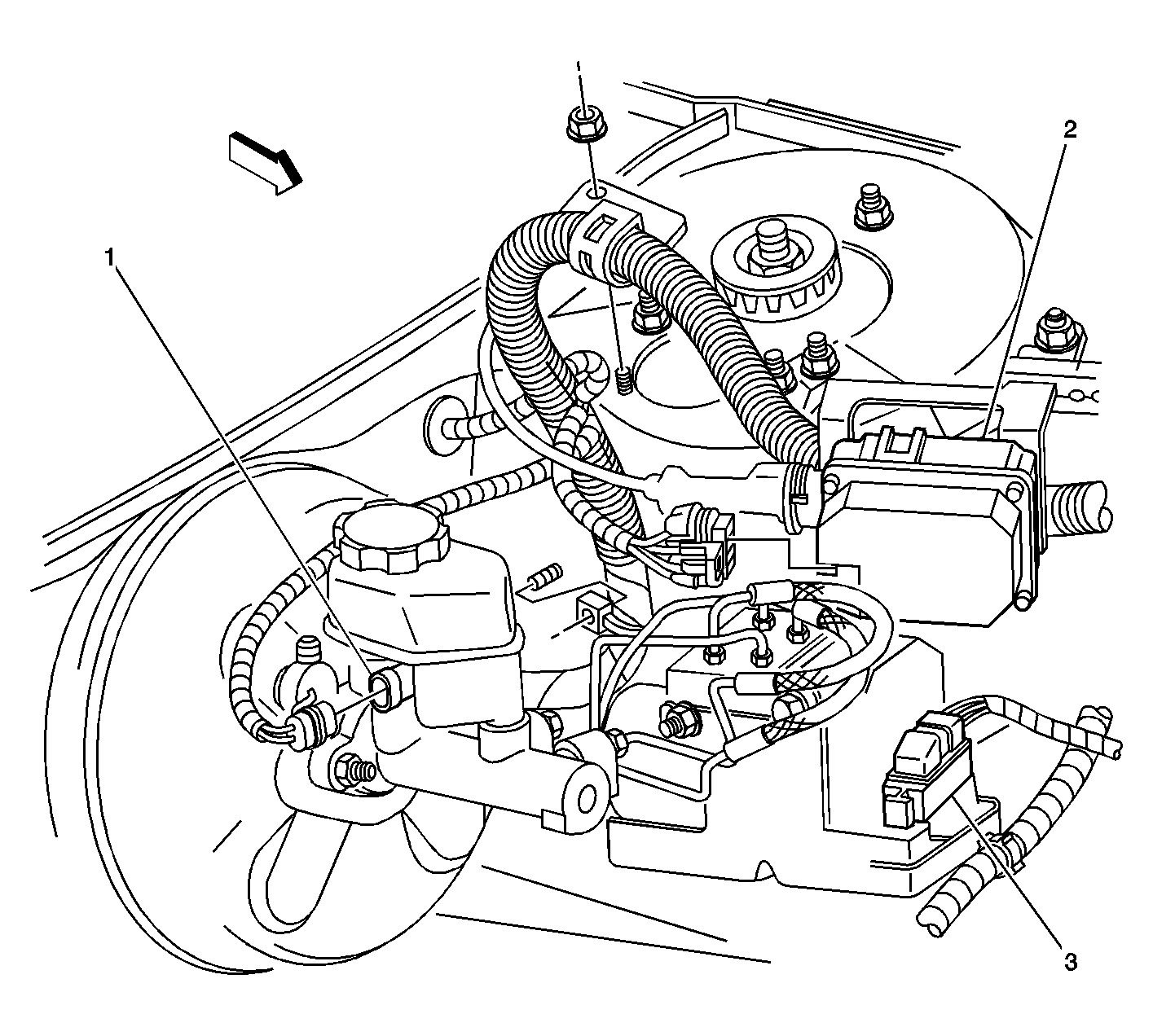

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Brake Fluid Level Switch |
| 2 |
Cruise Control Module |
| 3 |
Electronic Brake Control Module (EBCM) |
