Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

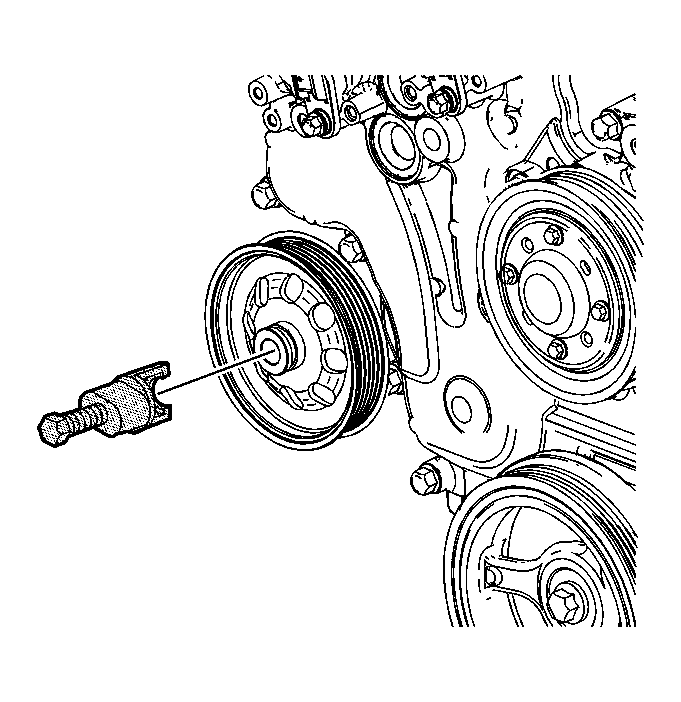

    Fig 1: Identifying J 25034-C
    GM1395918Courtesy of GENERAL MOTORS CORP.
  1. If necessary, using the J 25034-C  , remove the power steering pump pulley to access the power steering pump bolts.
    2. Fig 2: View Of Power Steering Pump Side Bolt
    GM1395920Courtesy of GENERAL MOTORS CORP.
  2. Remove the power steering pump side bolt.
    3. Fig 3: Locating Power Steering Pump Front Bolt
    GM1395922Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering pump front bolt.
  4. Remove the power steering pump.
