Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump from the engine for clearance. Refer to Power Steering Pump Replacement (LA1 )  or Power Steering Pump Replacement (LY7) .

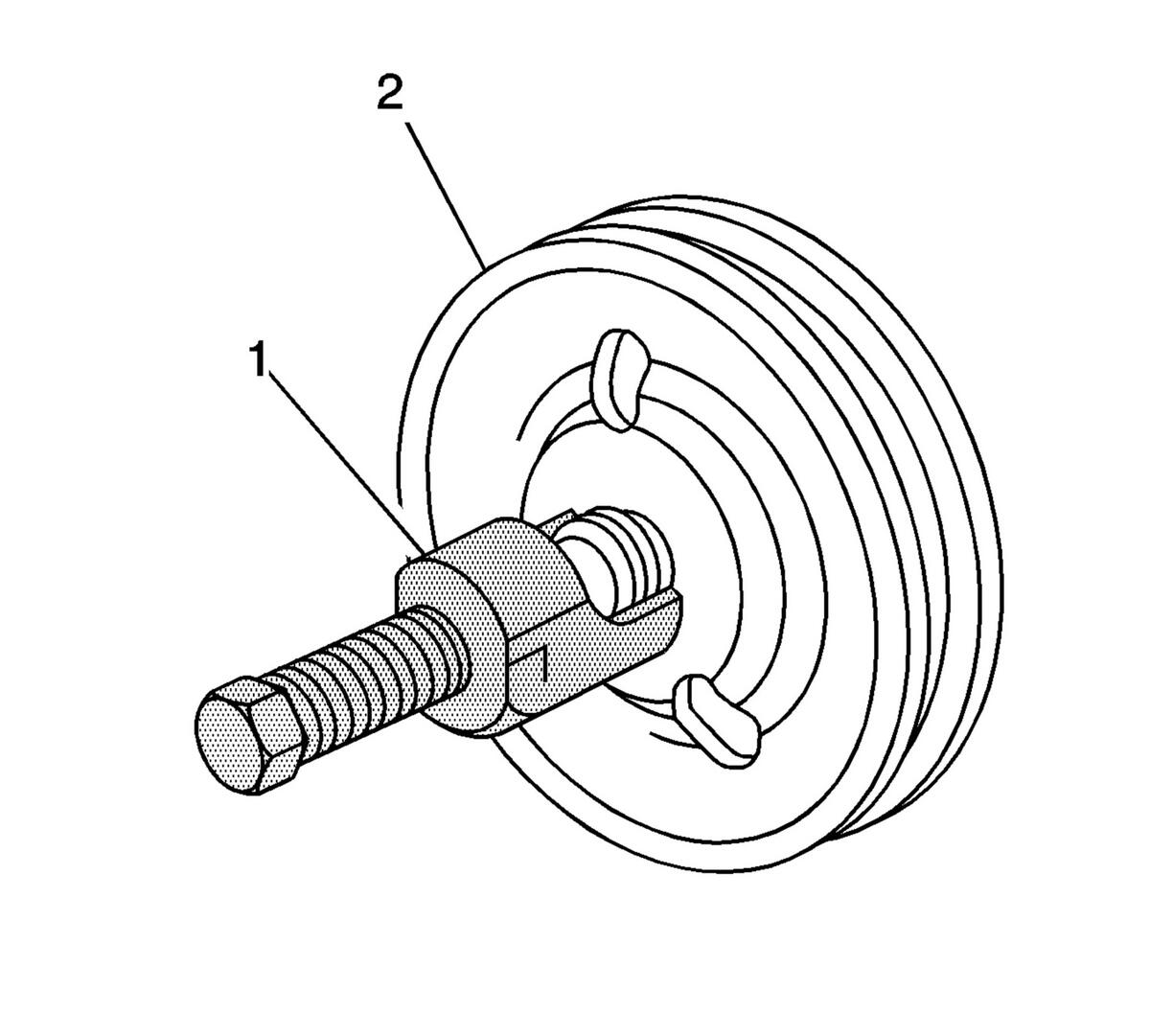

    2. Fig 1: View Of Power Steering Pump Pulley Remover
    GM649303Courtesy of GENERAL MOTORS CORP.
  2. Use the J 25034-C  in order to remove the pump pulley.
