Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
    3. Fig 1: Locating Front Wheel Speed Sensor Electrical Connector
    GM625609Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the wheel speed sensor electrical connector.
  4. Remove the wheel speed sensor electrical connector from the bracket.
  5. Remove the wheel drive shaft nut. Refer to Wheel Drive Shaft Replacement - Front in Wheel Drive Shafts.
  6. Remove the brake rotor. Refer to Brake Rotor Replacement - Front in Disc Brakes.

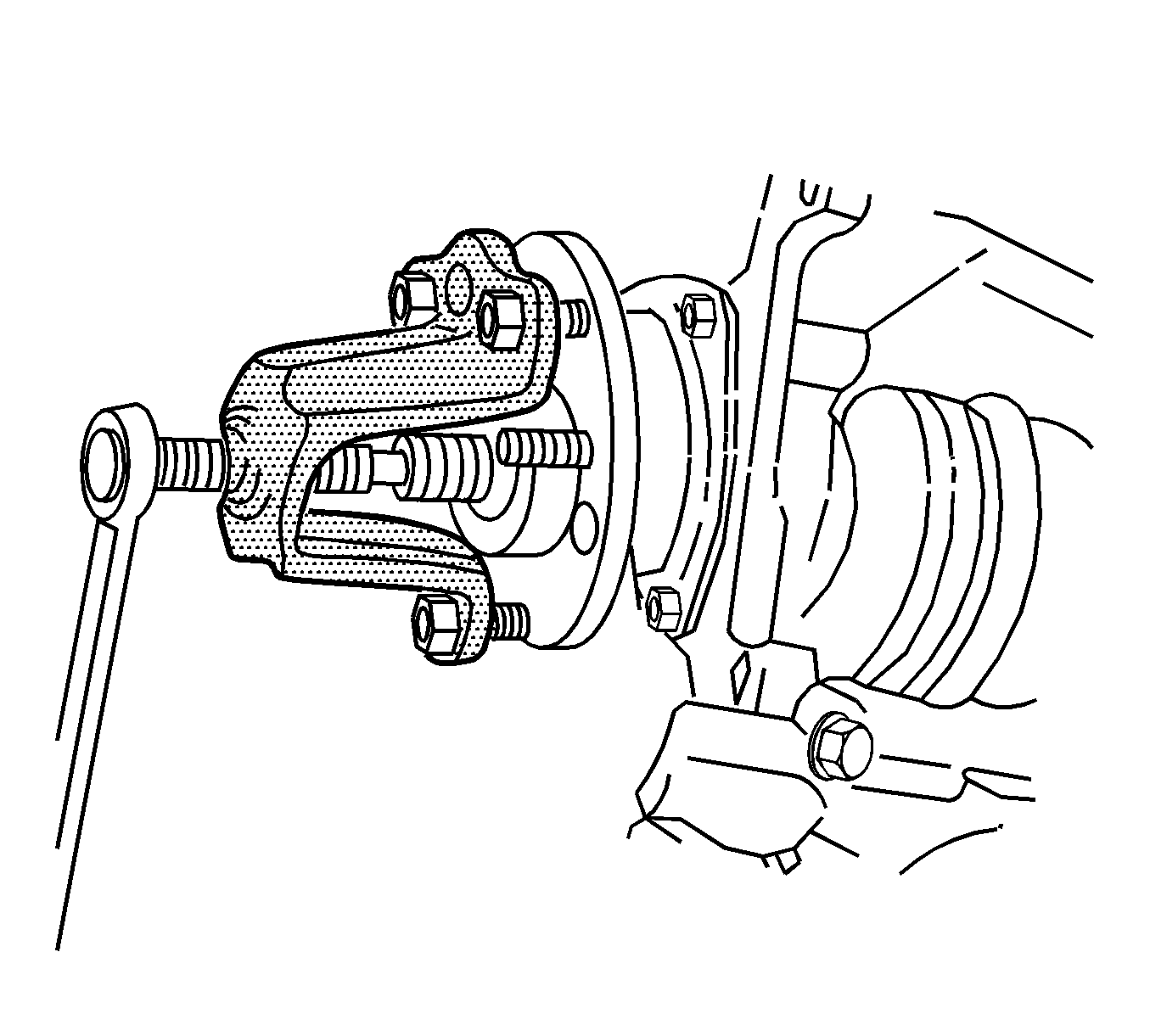

    7. Fig 2: Using J 28733-B To Push Wheel Drive Shaft Out Of Wheel Bearing/Hub
    GM40253Courtesy of GENERAL MOTORS CORP.
  7. Install the J 28733-B to the wheel bearing/hub.
  8. Use the J 28733-B in order to push the wheel drive shaft out of the wheel bearing/hub.
    9. Fig 3: View Of Wheel Bearing/Hub & Splash Shield
    GM357695Courtesy of GENERAL MOTORS CORP.
    CAUTION: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.
  9. Remove and discard the wheel bearing/hub bolts.
    10. IMPORTANT: Ensure that the wheel drive shaft outer seal (boot) is not damaged.
  10. Remove the wheel bearing/hub.
