Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

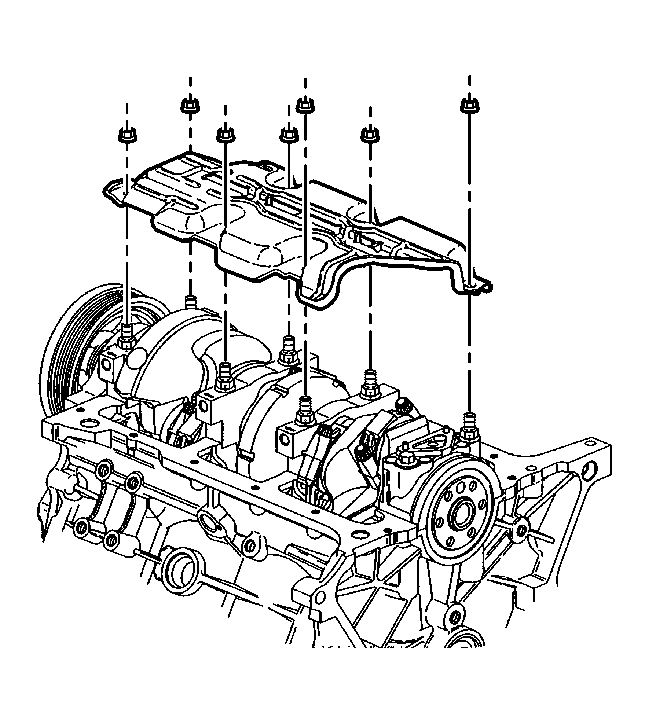

    Fig 1: View Of Crankshaft Oil Deflector & Nuts
    GM187031Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Rotate the oil pump driveshaft as necessary in order to obtain the engagement with the oil pump drive.
  1. Install the crankshaft oil deflector.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the crankshaft oil deflector nuts.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

    3. Fig 2: Removing Oil Pump & Oil Pump Drive Shaft
    GM187030Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pump and oil pump drive shaft.
  4. Install the oil pump bolt.

    Tighten:  Tighten the oil pump bolt to 41 N.m (30 lb ft).

  5. Install the oil pan. Refer to Oil Pan Replacement .
