Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil level indicator tube.
  2. Apply GM sealant P/N 12345739 or equivalent around the oil level indicator tube 12.7 mm (0.50 in) below the bead.

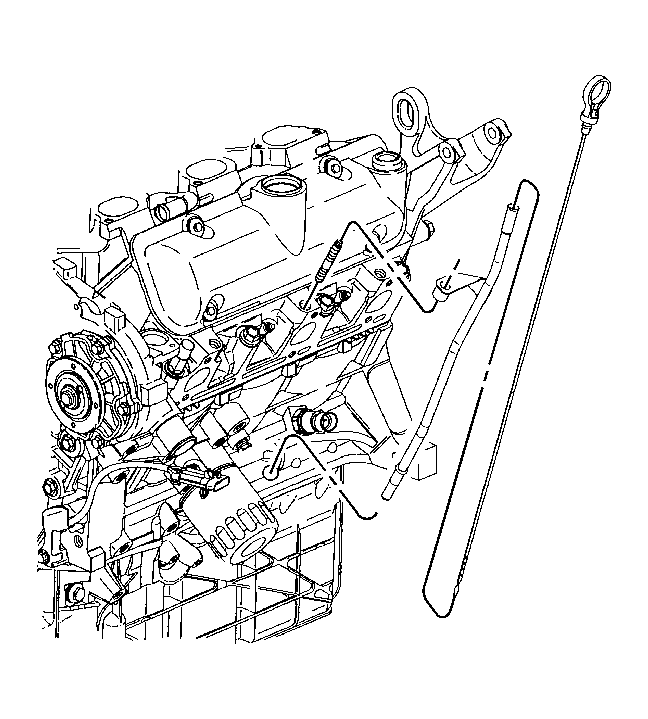

    3. Fig 1: View Of Oil Level Indicator Tube Bolt And Tube
    GM190506Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil level indicator tube and bolt.

    Tighten:  Tighten bolt to 25 N.m (18 lb ft.)

  4. Install the oil level indicator.
