Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

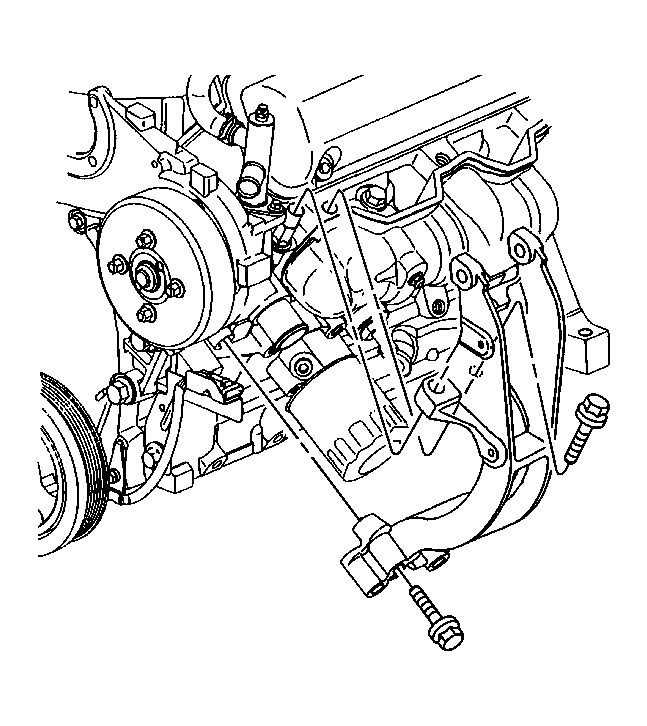

    Fig 1: View Of Lower Engine Mount Strut Bracket Bolt
    GM155767Courtesy of GENERAL MOTORS CORP.
  1. Position the right engine mount strut bracket over the pin locator.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the vertical engine mount strut bracket bolt through the right engine mount strut bracket to the cylinder head.

    Tighten:  Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  4. Install the engine mount strut bracket lower bolt through the right engine mount strut bracket into the cylinder block.

    Tighten:  Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  5. Install the air conditioning compressor. Refer to Compressor Replacement in Heating, Ventilation and Air Conditioning.
  6. Install the lower radiator baffle. Refer to Radiator Air Baffle Assemblies and Deflectors in Engine Cooling.
  7. Lower the vehicle.
    8. Fig 2: Locating Bolt & Nut For Engine Mount Strut At Right Engine Mount Strut Bracket
    GM105887Courtesy of GENERAL MOTORS CORP.
  8. Install the right engine mount strut to the right engine mount strut bracket. Refer to Engine Mount Strut Replacement - Right .
