Engine Mount Strut and Engine Lift Bracket Installation

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

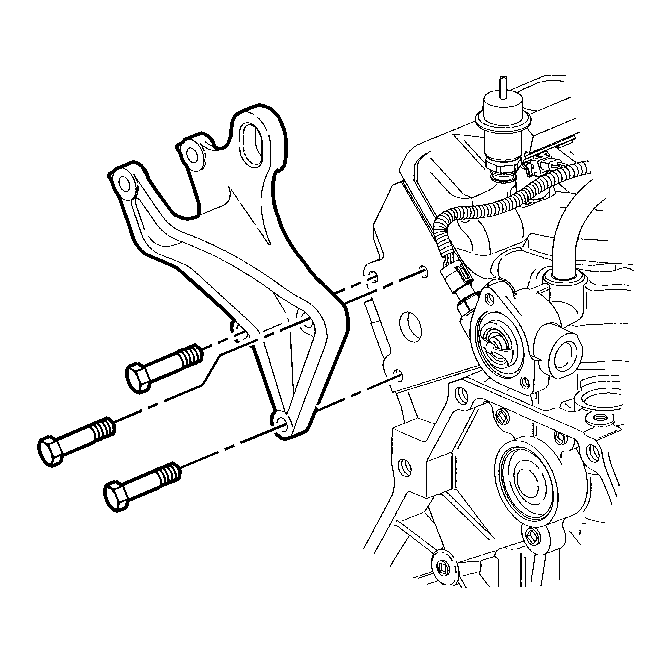

    Fig 1: Engine Mount Strut & Lift Bracket
    GM192658Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount strut and lift bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine mount strut and lift bracket bolts.

    Tighten:  Tighten the engine mount strut and lift bracket bolts to 70 N.m (52 lb ft).
