Engine Mount Strut and Air Conditioning Compressor Bracket Installation

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

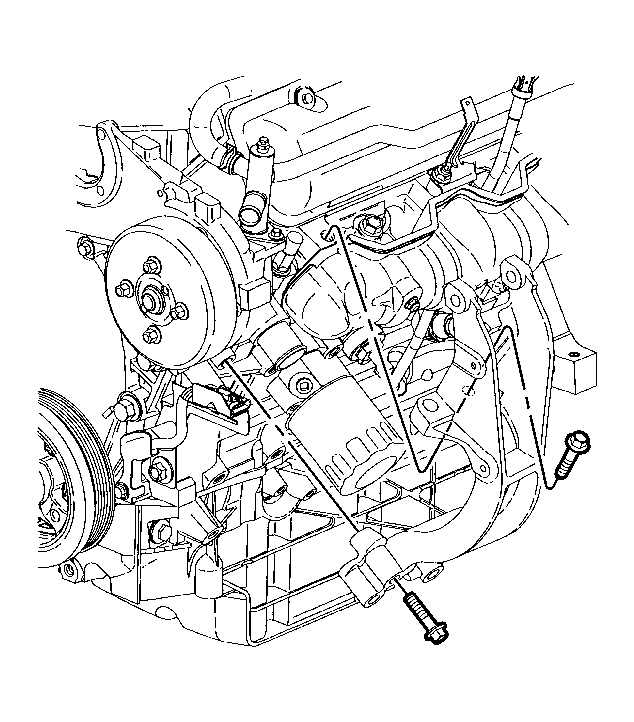

    Fig 1: Removing Engine Mount Strut & A/C Compressor Bracket
    GM192655Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount strut and A/C Compressor bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine mount strut and A/C Compressor bracket bolts.

    Tighten:  Tighten the engine mount strut and lift bracket bolts to 50 N.m (37 lb ft).
