Engine Lift Bracket and Generator Bracket Installation

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

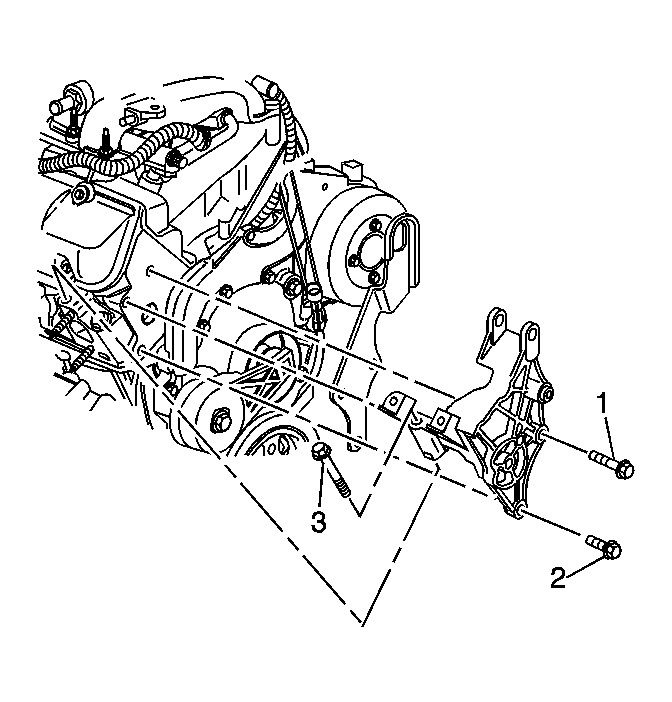

Fig 1: View Of Engine Lift Bracket & Generator Bracket

Courtesy of GENERAL MOTORS CORP.

Install the front engine lift hook.
Install the generator bracket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the generator bracket bolts.
Tighten: Tighten the generator bracket bolts in sequence (1, 2, 3) to 50 N.m (37 lb ft).
