Inline Harness Connector End Views: C413

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

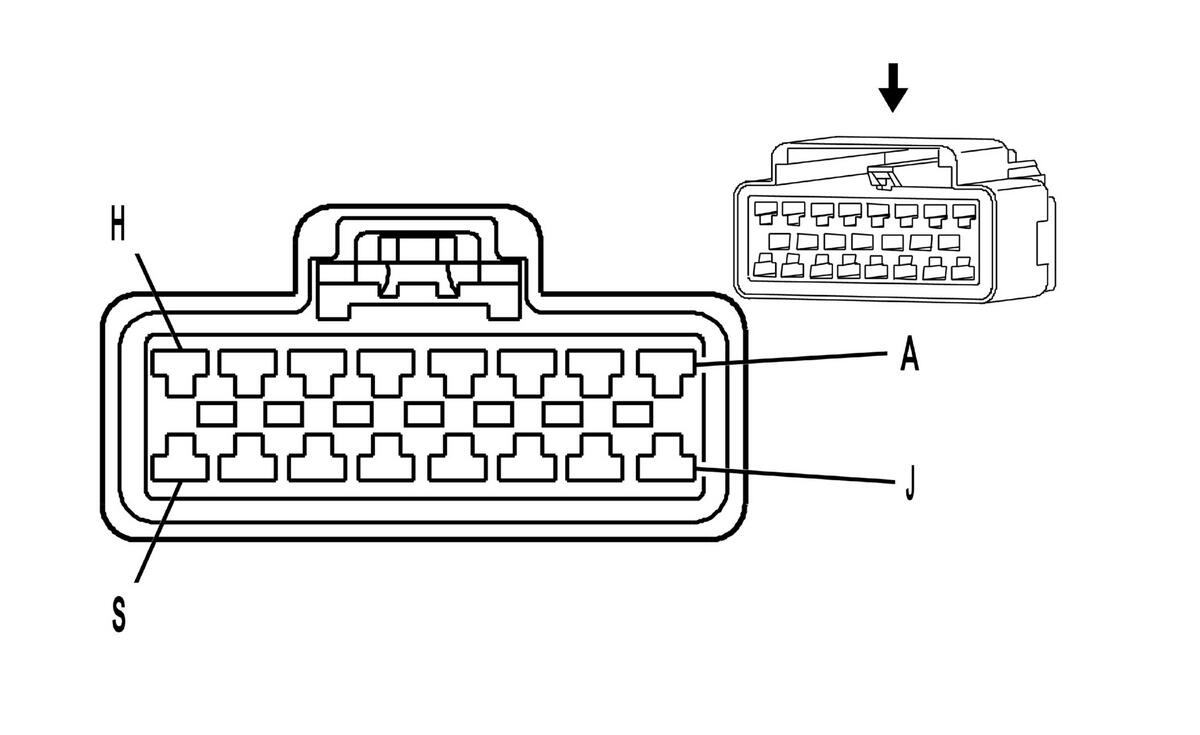

C413 Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326956 16-Way F 280 GT Series (BLK)		Connector Part Information		15326952 16-Way M 280 GT Series (BLK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	DK GRN	1927	Rear Defog Element Supply Voltage	A	DK GRN	1927	Rear Defog Element Supply Voltage
B	YEL	656	Liftgate Courtesy Lamp Control	B	YEL	656	Liftgate Courtesy Lamp Control
C	PNK/BLK	1303	Liftgate Ajar Switch Signal	C	PNK/BLK	1303	Liftgate Ajar Switch Signal
D	WHT/BLK	1221	Lift Gate Release Switch Signal	D	WHT/BLK	1221	Lift Gate Release Switch Signal
E	WHT	17	Stop Lamp Switch Signal	E	WHT	17	Stop Lamp Switch Signal
F	PPL	1305	Liftgate Lock Motor Unlock Signal	F	PPL	1305	Liftgate Lock Motor Unlock Signal
G	BRN	9	Park Lamp Supply Voltage	G	BRN	9	Park Lamp Supply Voltage
H	LT GRN	24	Backup Lamp Supply Voltage	H	LT GRN	24	Backup Lamp Supply Voltage
H	LT GRN	24	Backup Lamp Supply Voltage	H	LT GRN	24	Backup Lamp Supply Voltage
J	WHT	1304	Liftgate Lock Motor Lock Control	J	WHT	1304	Liftgate Lock Motor Lock Control
K	-	-	Not Used	K	-	-	Not Used
L	YEL	343	Accessory Voltage	L	YEL	343	Accessory Voltage
M	GRY	391	Rear Window Wiper Switch Signal	M	GRY	391	Rear Window Wiper Switch Signal
N	DK GRN	392	Rear Window Washer Pump Control	N	DK GRN	392	Rear Window Washer Pump Control
P	BLK	1150	Ground	P	BLK	1150	Ground
R-S	-	-	Not Used	R-S	-	-	Not Used
