C320 (KA1)

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

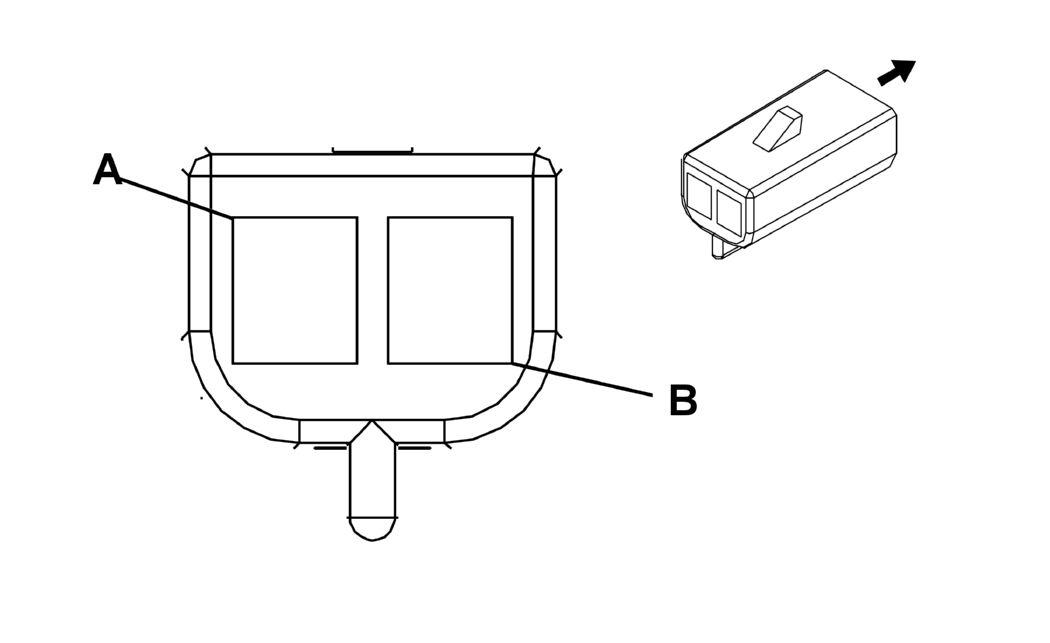

C320 (KA1) Connector End View

GM646421Courtesy of GENERAL MOTORS CORP.
GM258301Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059253
  • 2-Way F Metri-Pack 150 Series (GRN)
 Connector Part Information
  • 12059254
  • 2-Way M Metri-Pack 150 Series (GRN)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN Heated Seat Element (Back) - Front Passenger Ground A BLK Heated Seat Element (Back) - Front Passenger Ground
B BRN Heated Seat Element (Back) - Front Passenger Supply Voltage B YEL Heated Seat Element (Back) - Front Passenger Supply Voltage
