C304 (G67)

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
C304 (G67) Connector End View

GM646372Courtesy of GENERAL MOTORS CORP.

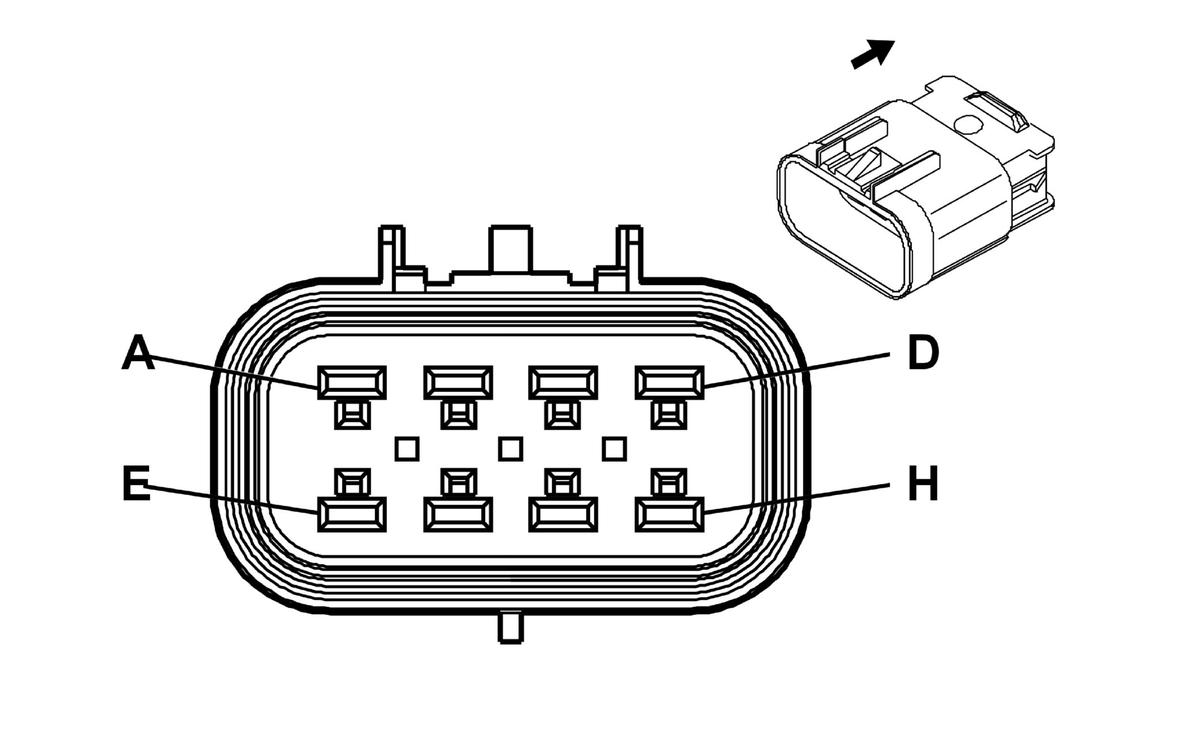

GM847234Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326654
  • 8-Way F GT 280 Series (BLK)
 Connector Part Information
  • 15326655
  • 8-Way M GT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 840 Battery Positive Voltage A - - Battery Positive Voltage
B ORN 840 Battery Positive Voltage B - - Battery Positive Voltage
C WHT 320 Ground C - - Ground
D YEL 321 ALC Compressor Relay Control D - - ALC Compressor Relay Control
E ORN 1240 Battery Positive Voltage E - - Battery Positive Voltage
F ORN 840 Battery Positive Voltage F - - Battery Positive Voltage
G BLK 450 Ground G - - Ground
H WHT 837 ALC Inflator Relay Coil Control H - - ALC Inflator Relay Coil Control
