C108 (Ly7)

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
C108 (LY7) Connector End View

GM73234Courtesy of GENERAL MOTORS CORP.

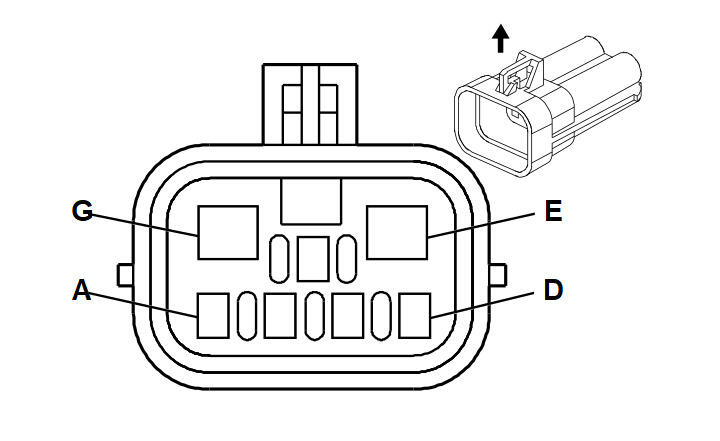

GM1372292Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059471
  • 7-Way F Metri-Pack 150, 480 Series (BLK)
 Connector Part Information
  • 12052200
  • 7-Way M Metri-Pack 150, 480 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK/BLK 5291 Ignition 1 Voltage A WHT 5291 Ignition 1 Voltage
B - - Not Used B - - Not Used
C DK GRN 59 A/C Compressor Clutch Supply Voltage C DK GRN 59 A/C Compressor Clutch Supply Voltage
D PNK/LBK 5292 Ignition 1 Voltage D WHT 5292 Ignition 1 Voltage
E PPL 6 Starter Solenoid Crank Voltage E PPL 6 Starter Solenoid Crank Voltage
F PNK/BLK 5293 Ignition 1 Voltage F WHT 5293 Ignition 1 Voltage
G BLK/WHT 451 Ground G BLK/WHT 451 Ground
