Inline Harness Connector End Views: C101

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

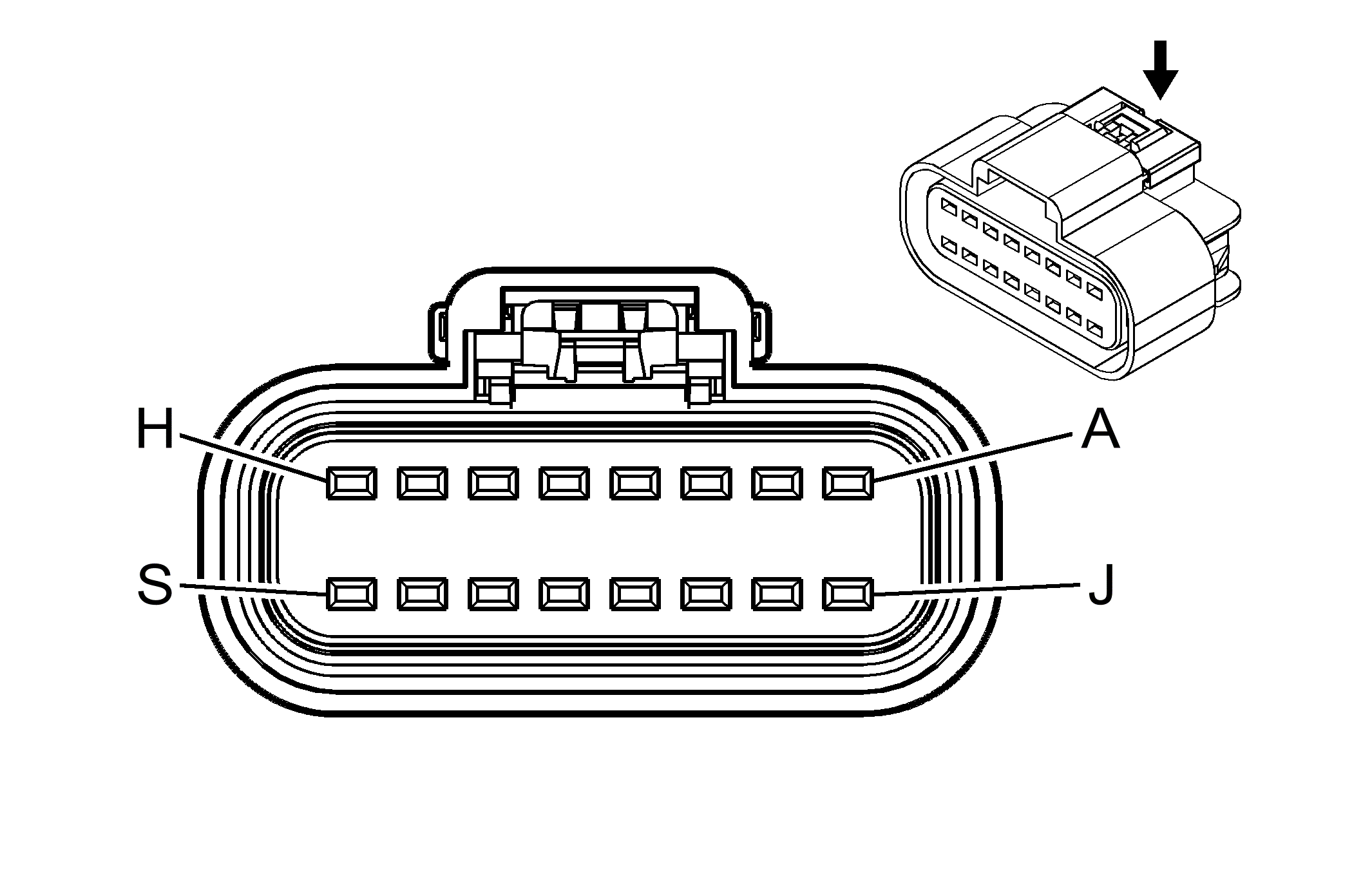

C101 Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326864 16-Way F 150 Series Sealed (BLK)		Connector Part Information		15326868 16-Way M 150 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	WHT	17	Stop Lamp Switch Signal	A	WHT	17	Stop Lamp Switch Signal
B	YEL	2470	Class 2 Serial Data (LY7)	B	YEL	2470	Class 2 Serial Data (LY7)
C	PNK	39	Ignition 1 Voltage (LY7)	C	PNK	39	Ignition 1 Voltage (LY7)
D	BRN	882	Right Rear Wheel Speed Sensor Signal	D	BRN	882	Right Rear Wheel Speed Sensor Signal
E	WHT	883	Right Rear Wheel Speed Sensor Low Reference	E	WHT	883	Right Rear Wheel Speed Sensor Low Reference
F	LT BLU	1122	ABS/TCS Class 2 Serial Data	F	LT BLU	1122	ABS/TCS Class 2 Serial Data
G	BRN	1271	Low Reference (LY7)	G	BRN	1271	Low Reference (LY7)
H	WHT/BLK	1164	5-Volt Reference (LY7)	H	WHT/BLK	1164	5-Volt Reference (LY7)
J	DK BLU	1161	APP Sensor 1 Signal	J	DK BLU	1161	APP Sensor 1 Signal
K	BLK	884	Left Rear Wheel Speed Sensor Signal	K	BLK	884	Left Rear Wheel Speed Sensor Signal
L	RED	885	Left Rear Wheel Speed Sensor Low Reference	L	RED	885	Left Rear Wheel Speed Sensor Low Reference
M	TAN	1274	5-Volt Reference (LY7)	M	TAN	1274	5-Volt Reference (LY7)
N	PPL	1272	Low Reference (LY7)	N	PPL	1272	Low Reference (LY7)
P	LT BLU	1162	APP Sensor 2 Signal (LY7)	P	LT BLU	1162	APP Sensor 2 Signal (LY7)
R	TAN/WHT	2500	High Speed GMLAN Serial Data Bus+ (LY7)	R	TAN/WHT	2500	High Speed GMLAN Serial Data Bus+ (LY7)
S	TAN	2501	High Speed GMLAN Serial Data Bus- (LY7)	S	TAN	2501	High Speed GMLAN Serial Data Bus- (LY7)
