Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

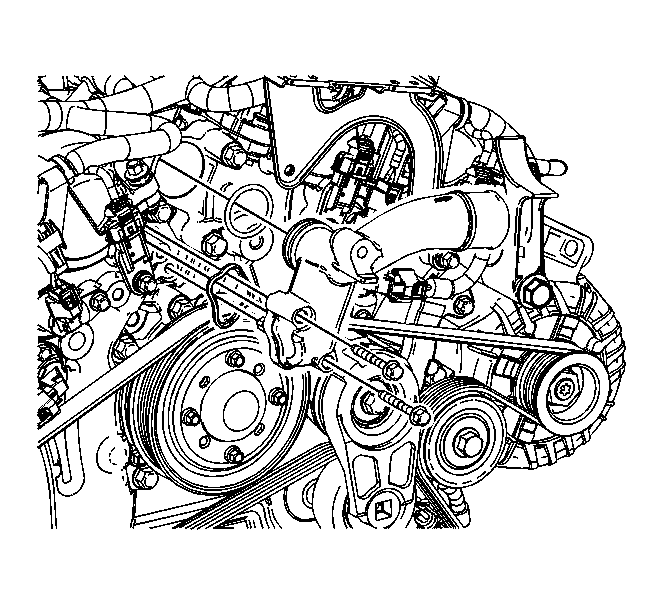

    Fig 1: Identifying Water Outlet Bolts And The Water Outlet
    GM1395997Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW water outlet seals.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the water outlet and the water outlet bolts.

    Tighten:  Tighten the water outlet bolts to 10 N.m (89 lb in).

  3. Install the power steering reservoir and the power steering pressure hose bracket to the water outlet. Refer to Remote Power Steering Fluid Reservoir Replacement (LY7) in Power Steering System.
  4. Install the upper radiator hose to the water outlet. Refer to Radiator Hose Replacement - Inlet (LA1)  or Radiator Hose Replacement - Inlet (LY7) .
  5. Fill the cooling system. Refer to Draining and Filling Cooling System .
