Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

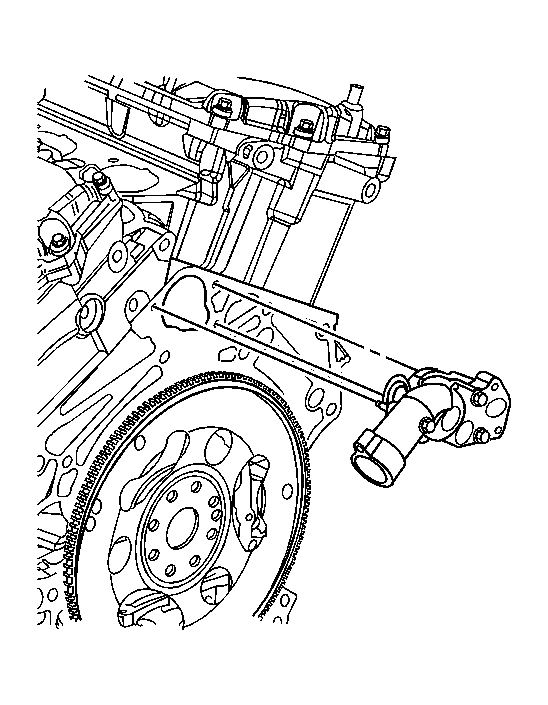

Fig 1: View Of Thermostat (LY7)

Courtesy of GENERAL MOTORS CORP.

Remove the air cleaner. Refer to Air Cleaner Assembly Replacement in Engine Controls-3.6L (LY7).
Remove the throttle body assembly. Refer to Throttle Body Assembly Replacement .
Remove the heater pipes. Refer to Heater Pipes Replacement (LY7) in Heating, Ventilation and Air Conditioning.

IMPORTANT: Use a universal or swivel socket with a long extension in order to remove the bolts.

Remove the coolant inlet pipe. Refer to Coolant Pipe Replacement - Inlet .

IMPORTANT: Use a universal or swivel socket with a long extension in order to remove the bolts.

Remove the thermostat bolts and the thermostat.
Clean the thermostat and heater pipe sealing surfaces.
